HELP! Is a 3 Way Valve for Chemical Injection needed?

Discussion in 'The Hardware' started by Bill P, Feb 13, 2018.

  1. Bill P
    Bill P

    Member

    Joined:
    Apr 15, 2016
    Messages:
    14
    Location:
    Palm Harbor FL
    Name:
    Bill Pennington
    Is a 3 way valve needed if your installing Last Step Chemical Injection to a General Pump to bleed the chemical system? So far I have purchased a General Pump Pulse Pump part#100906 and the pulse pump adapter. My machine already has a Dwyer meter. Do I need an additional check valve as well? Suggestions on how to plumb this would be appreciated. Other ideas? Machine is a 2015 EZ3547. Thank you!
  2. Justin Stockwell
    Justin Stockwell

    Member

    Joined:
    Mar 18, 2007
    Messages:
    1,229

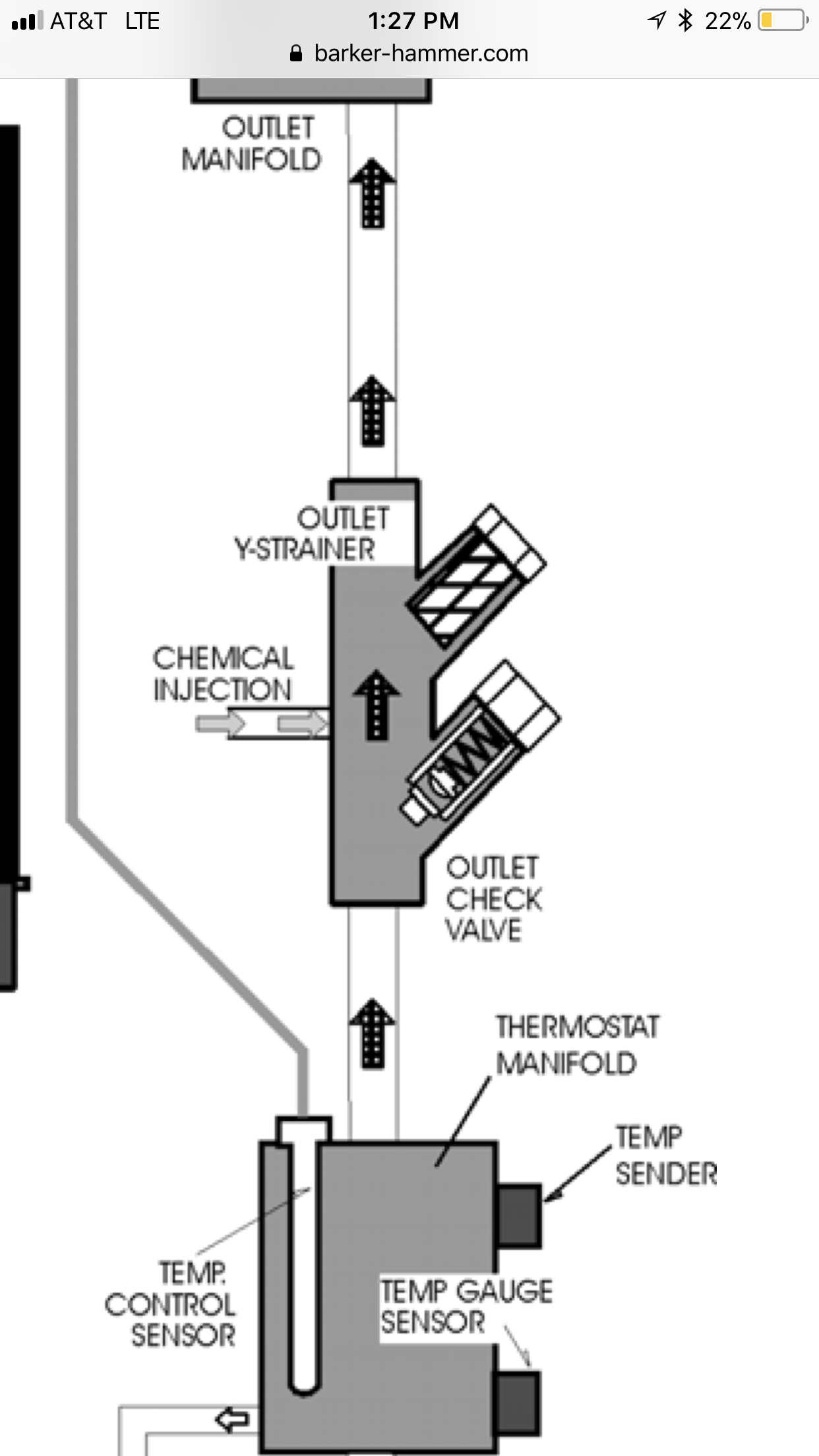

    02A871F2-32C7-46A6-906C-89F5DAA786FD.png Yes. You need a 3 way valve. On/ off and prime.

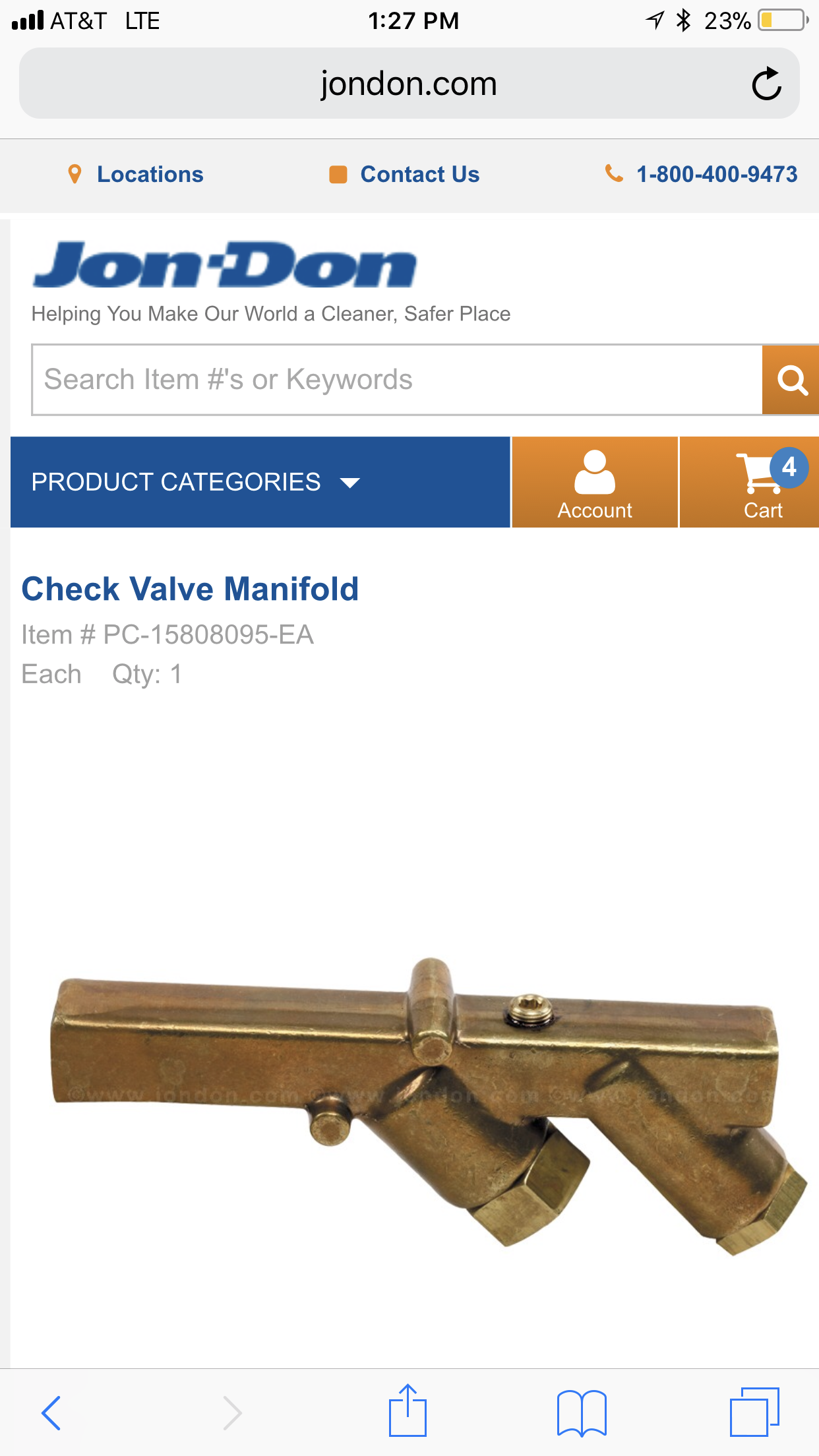

    Prime hose can be ran back to the chemical jug. 88BBC6B0-8B53-4DF4-8085-7F319F8B2092.png
    Nomad74 and Bill P like this.
  3. Justin Stockwell
    Justin Stockwell

    Member

    Joined:
    Mar 18, 2007
    Messages:
    1,229
    This manifold would work
    Bill P and Jim Pemberton like this.
  4. Bill P
    Bill P

    Member

    Joined:
    Apr 15, 2016
    Messages:
    14
    Location:
    Palm Harbor FL
    Name:
    Bill Pennington
    Thank you Justin! Finally getting around to this upgrade!
    Nomad74 and Mikey P like this.
  5. Justin Stockwell
    Justin Stockwell

    Member

    Joined:
    Mar 18, 2007
    Messages:
    1,229

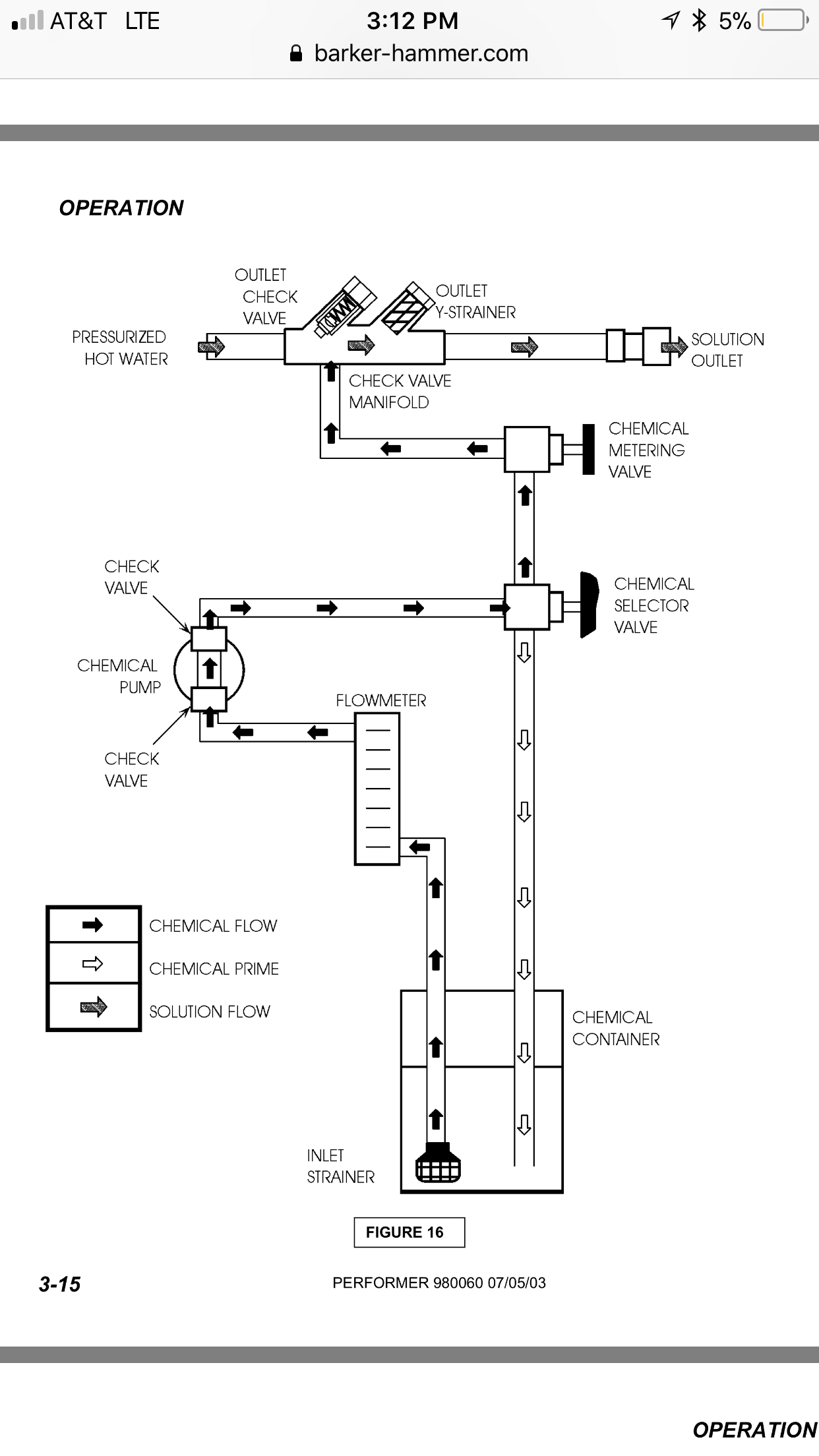

    43C278B9-0BA9-4A5E-B531-9D4A2E8DF625.png So when your three way valve is turned to on, it should go to the small opening on the manifold between the check valve and strainer.
    Needle valve in between the three way Valve and the check valve strainer so you can adjust flow.
  6. Nomad74
    Nomad74

    Supportive Member

    Joined:
    Feb 4, 2016
    Messages:
    5,038
    Location:
    Redding
    Name:
    Damon
    I love this place for this reason alone.


    Justin, Charge your phone. 5% is unacceptable.
    Bill P likes this.
  7. Justin Stockwell
    Justin Stockwell

    Member

    Joined:
    Mar 18, 2007
    Messages:
    1,229
    I don’t feel alive till I’m below 10%.
  8. dealtimeman
    dealtimeman

    Everyday is Saturday.

    Joined:
    Sep 20, 2008
    Messages:
    10,478
    Location:
    Fort Worth , Texas
    Name:
    Michael
    Double like!
  9. Desk Jockey
    Desk Jockey

    Rico

    Joined:
    Oct 9, 2006
    Messages:
    56,325
    Location:
    a planet far far away
    Name:
    Mr Misunderstood
    :biggrin:
  10. Bill P
    Bill P

    Member

    Joined:
    Apr 15, 2016
    Messages:
    14
    Location:
    Palm Harbor FL
    Name:
    Bill Pennington
    That's the diagram I was looking for. Thank you!!!!! :)
    Justin Stockwell likes this.
  11. steve_64
    steve_64

    Member

    Joined:
    Aug 11, 2012
    Messages:
    7,203
    Living on the edge!

Share This Page
