Blown Head Gasket Repair

[Chads]

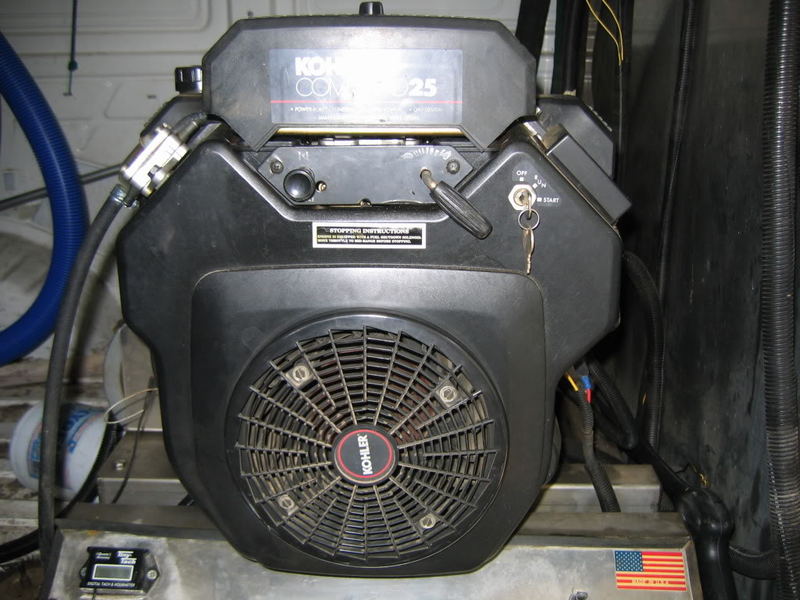

Here are some pics of my head gasket repair.



[Chads]

Re: Blown Head Gasket

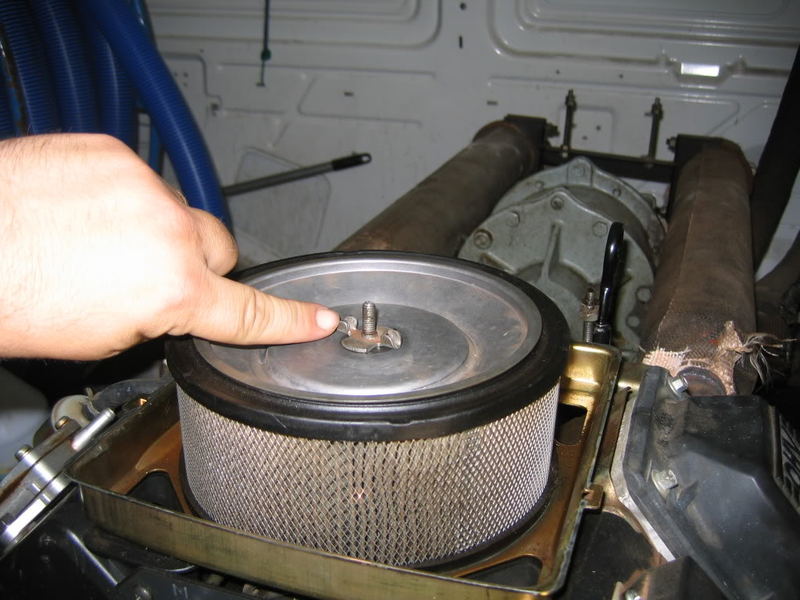

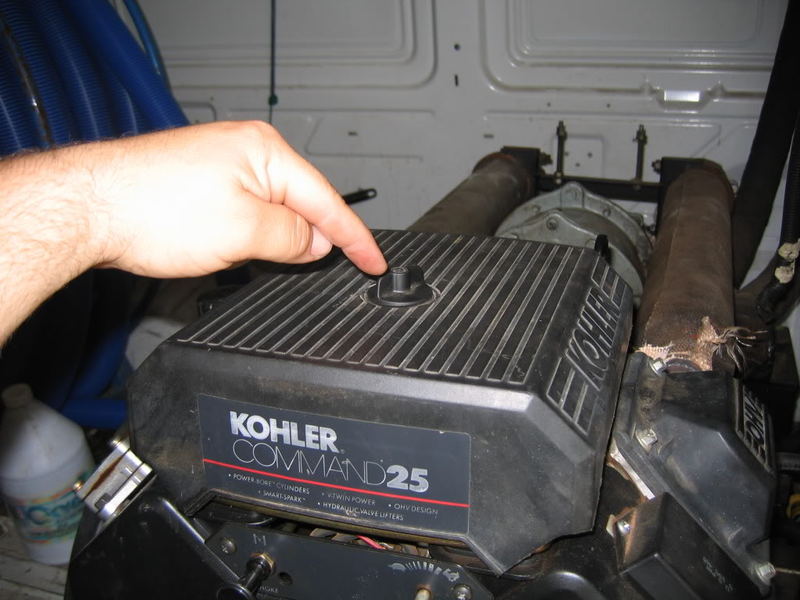

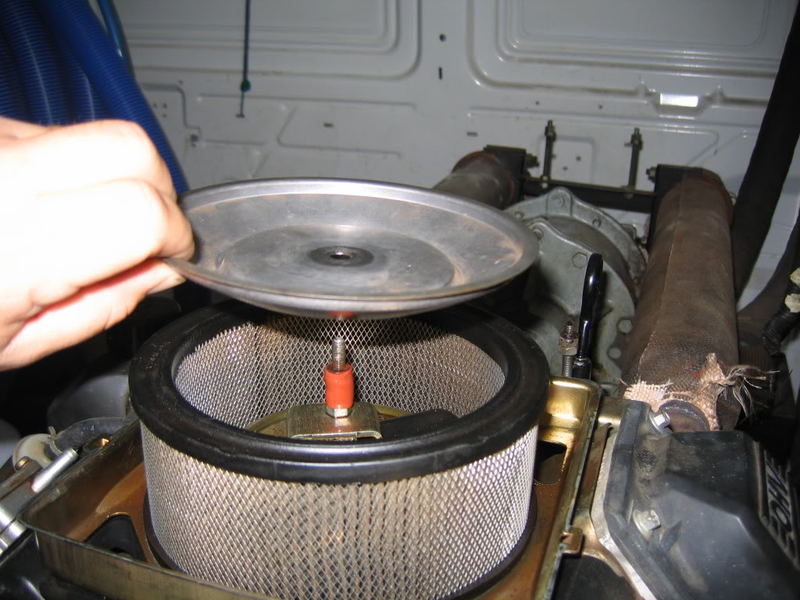

First you have to remove the air cleaner



[Chads]

Re: Blown Head Gasket



[Chads]

Re: Blown Head Gasket



[Chads]

Re: Blown Head Gasket

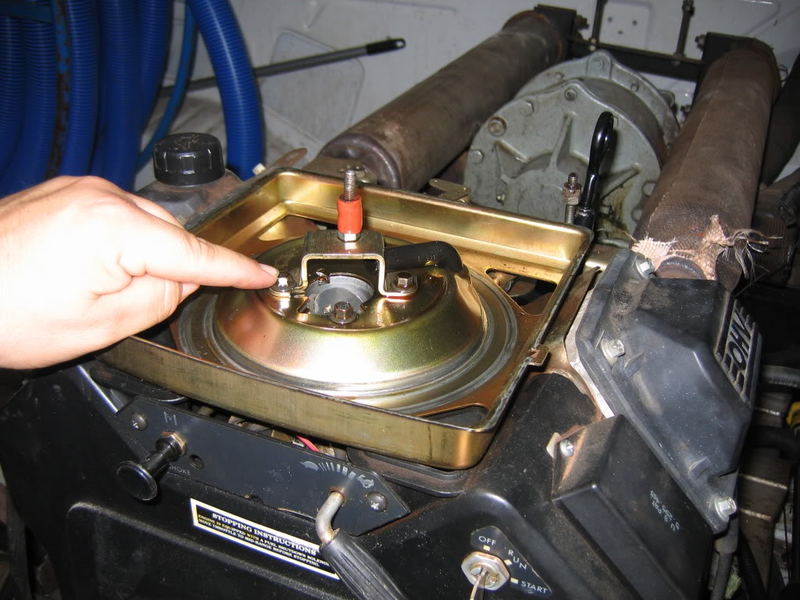

Then you have to remove the air cleaner base assembly



[Chads]

Re: Blown Head Gasket

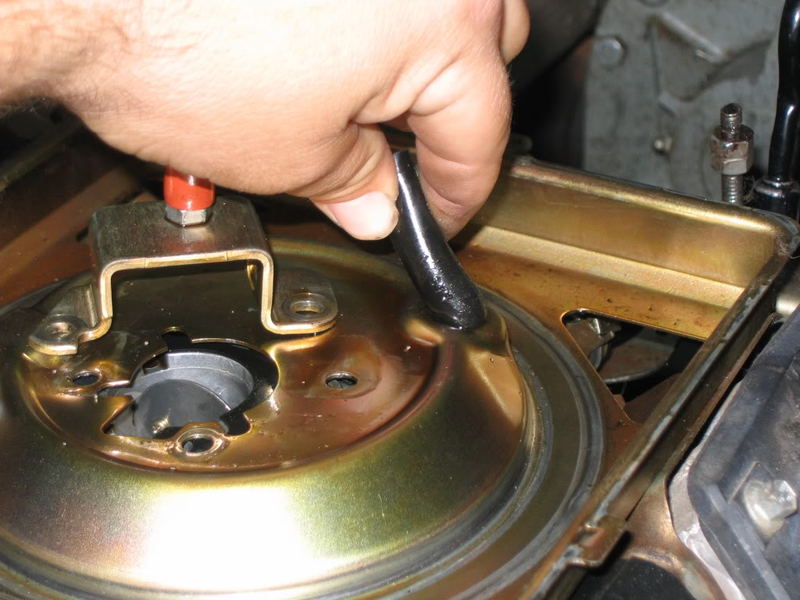

then you will take off the cleaner base and push the rubber hose through the backs side of plate.



[Chads]

Re: Blown Head Gasket

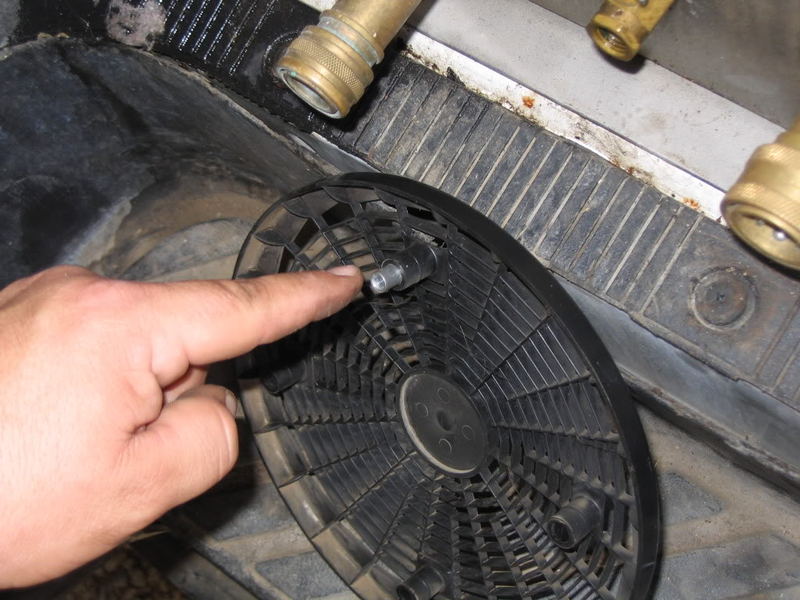

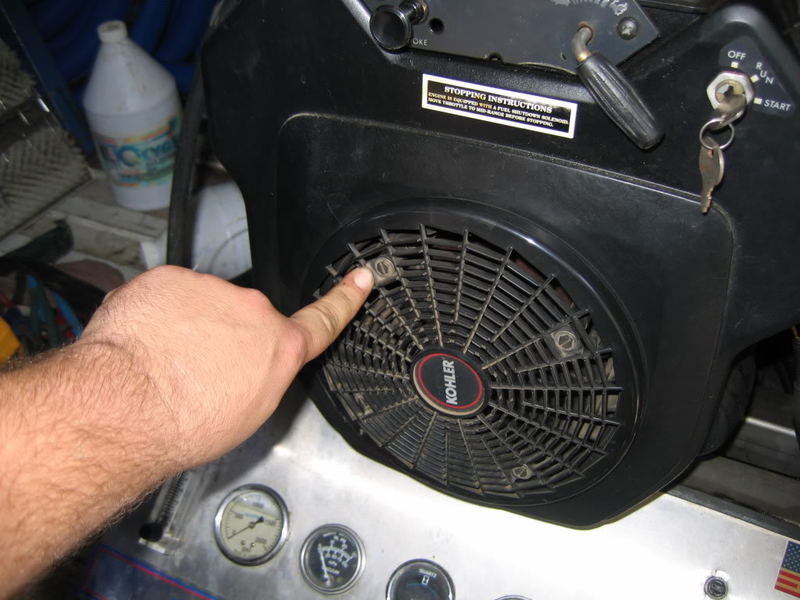

Then you can take off the colling fan cover and be careful not to lose the aluminum spacers that come off too.



[Chads]

Re: Blown Head Gasket



[Chads]

Re: Blown Head Gasket

I like to keep everything organized so I use a old egg crate and try to label all the nuts and bolts of what they come off of.



[Chads]

Re: Blown Head Gasket

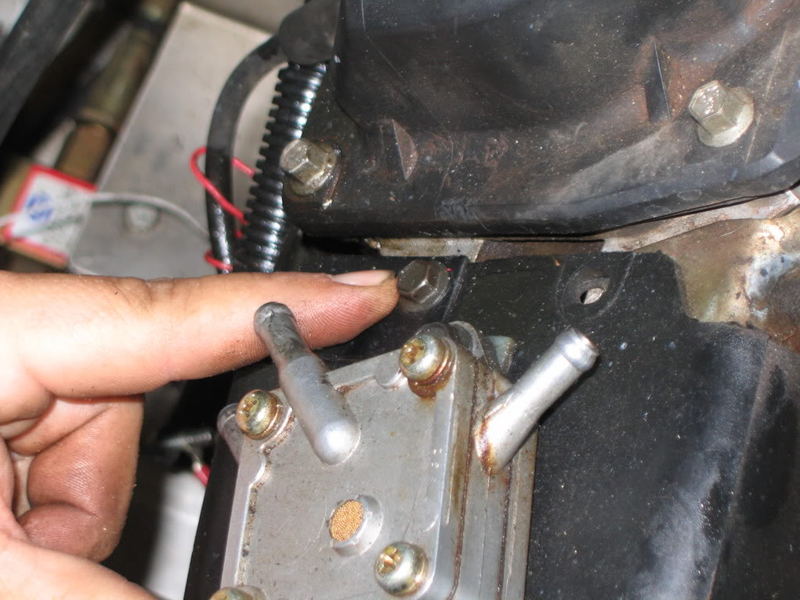

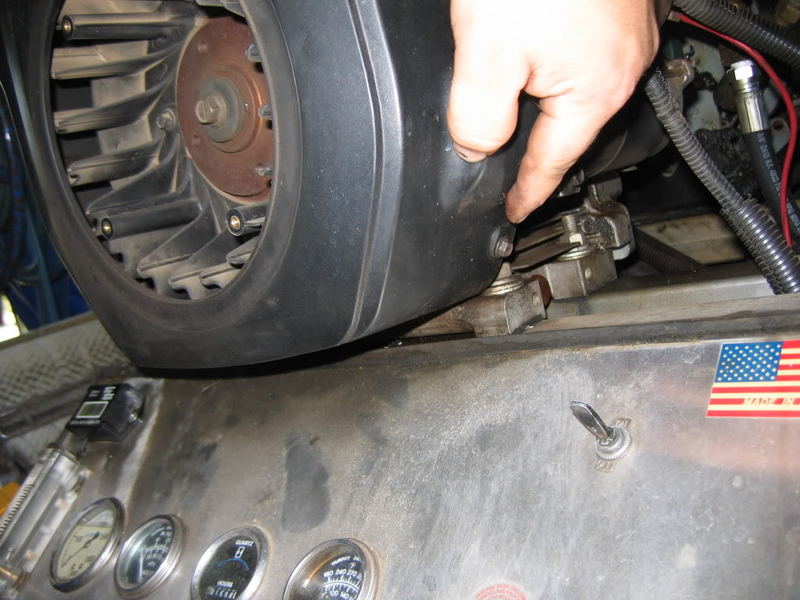

then you can start taking off the plastic engine shroud there are like seven bolts holding it on.



[Chads]

Re: Blown Head Gasket



[Chads]

Re: Blown Head Gasket



[Chads]

Re: Blown Head Gasket



[Chads]

Re: Blown Head Gasket



[Chads]

Re: Blown Head Gasket

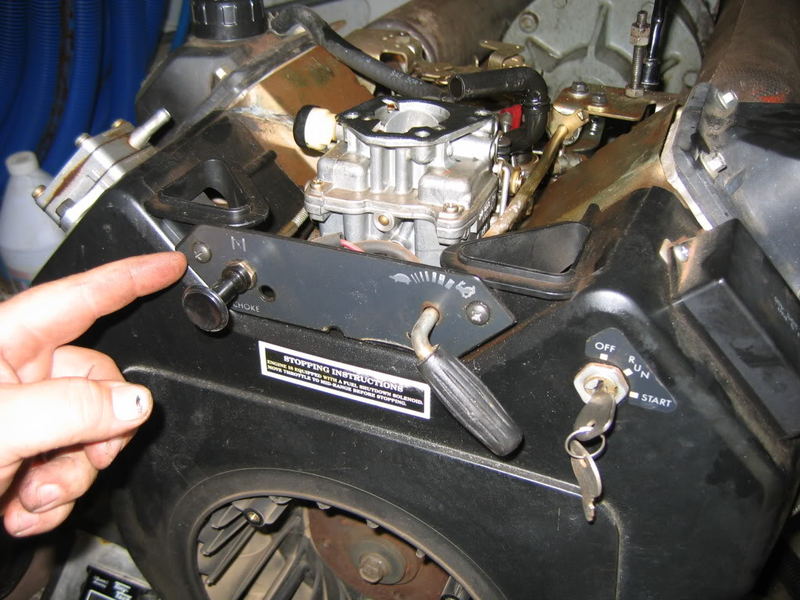

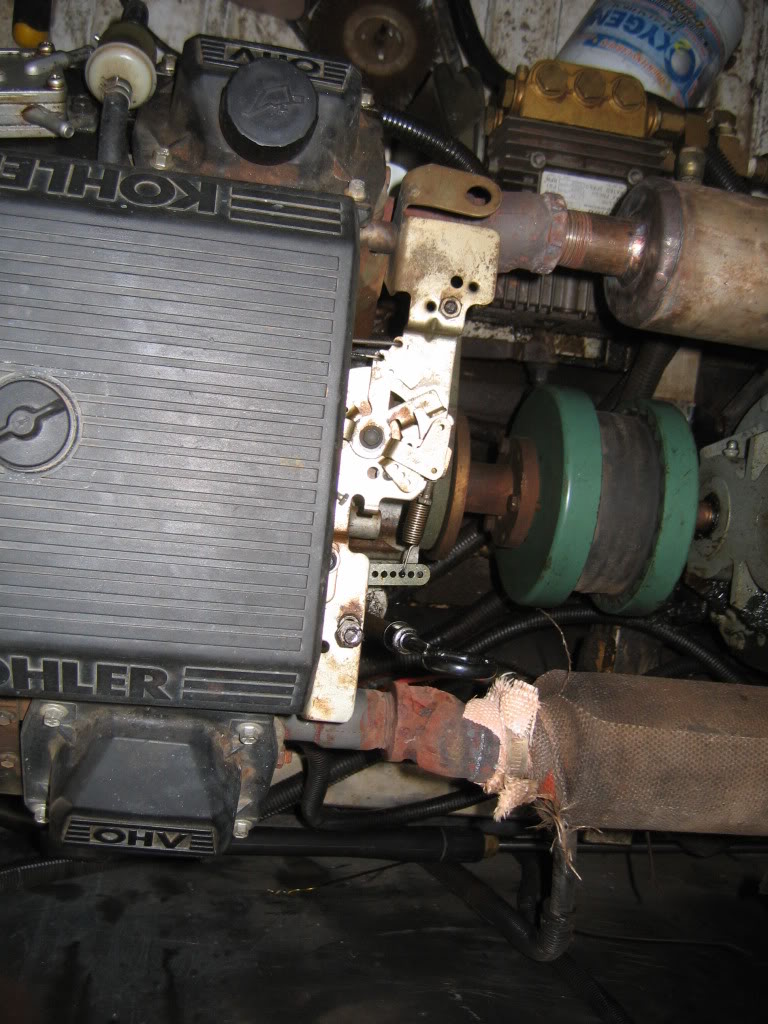

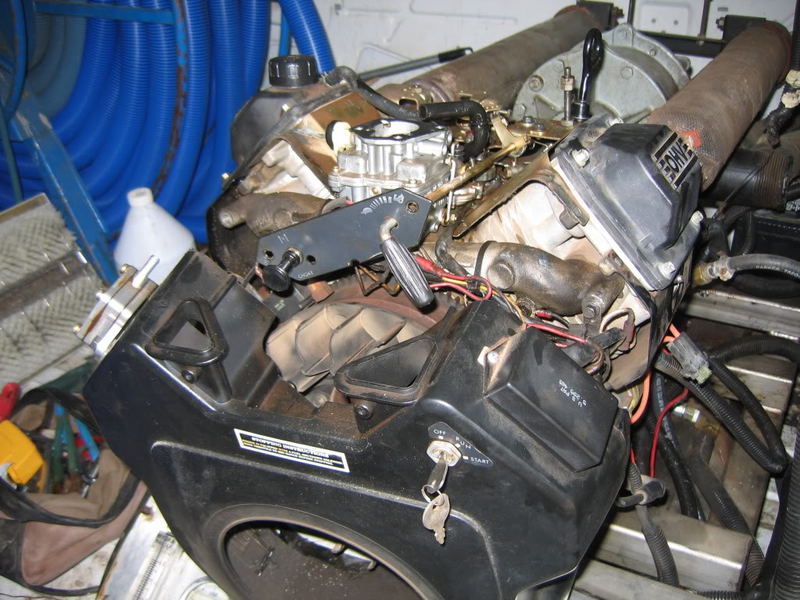

Then you have to remove the choke/throttle plate, you will have to work the plate and cables around so you wont have disconect them and you can pull the engine shroud back.



[Chads]

Re: Blown Head Gasket



[Chads]

Re: Blown Head Gasket

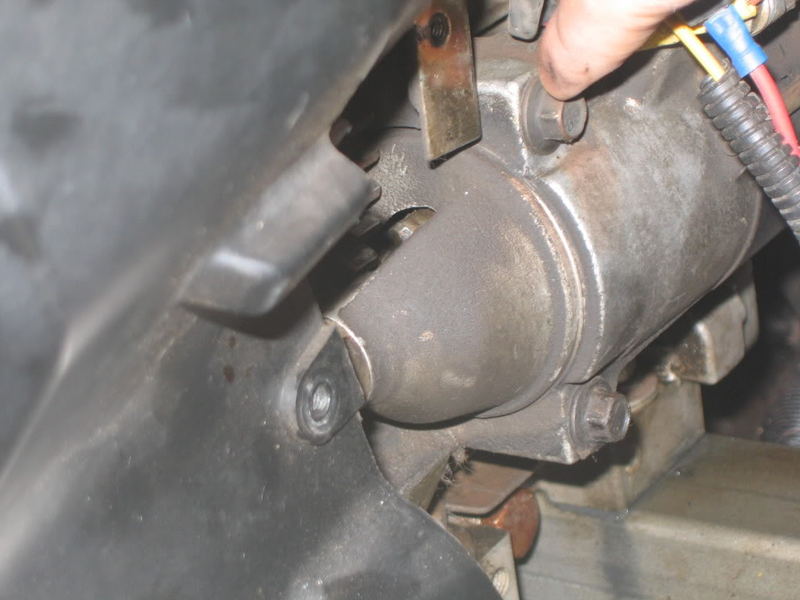

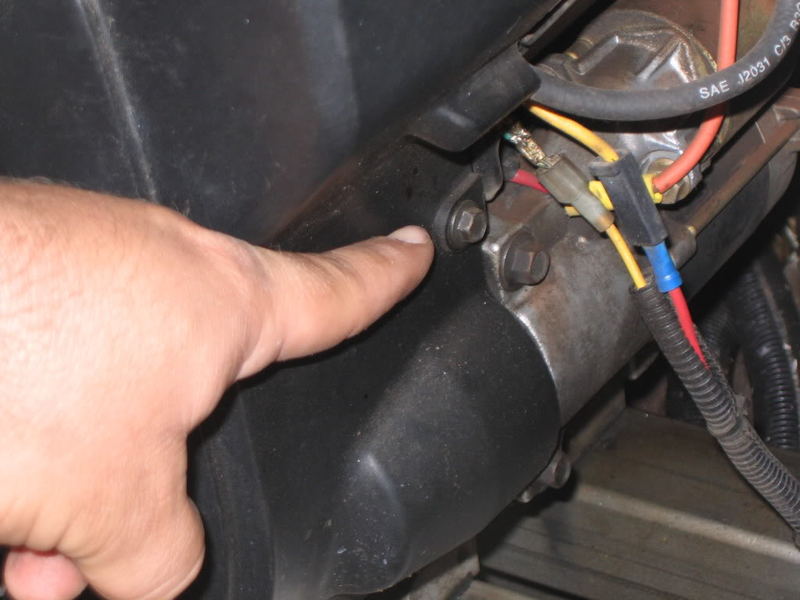

Then I took off the starter to make it easier to get to the head safety heat shroud



[Chads]

Re: Blown Head Gasket

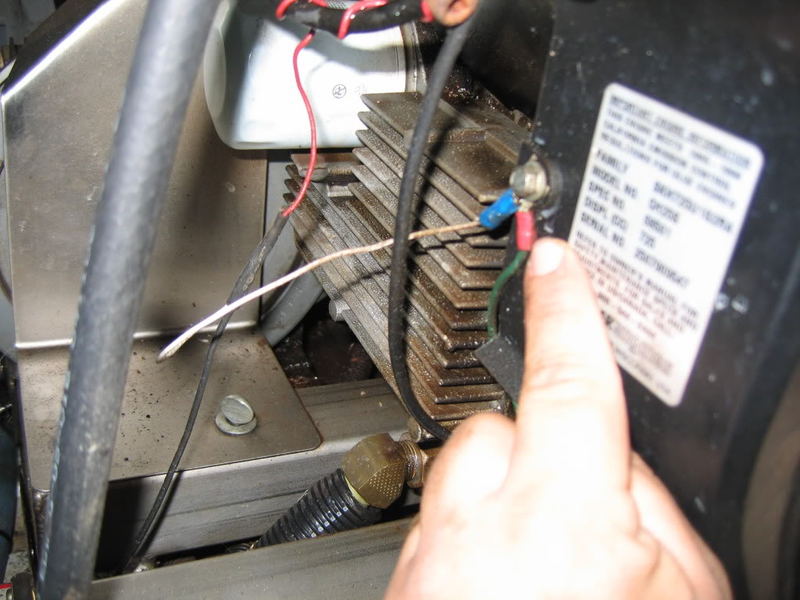

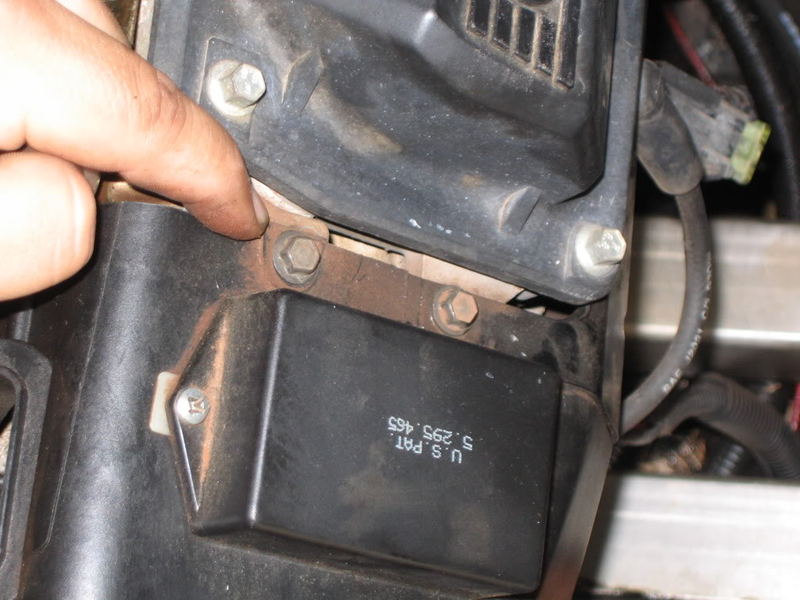

Then the heat shroud has to bolts



[Chads]

Re: Blown Head Gasket

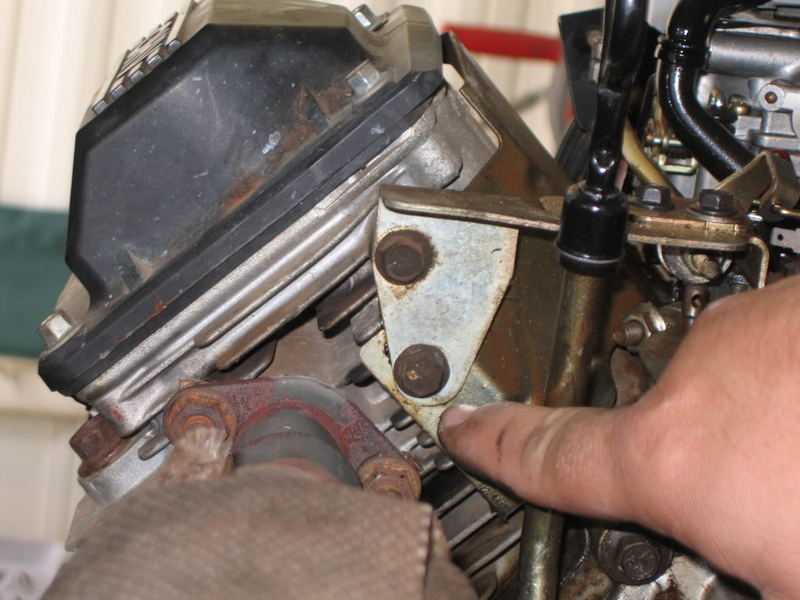

Then the throttle bracket brace bolts just these 2



[Chads]

Re: Blown Head Gasket

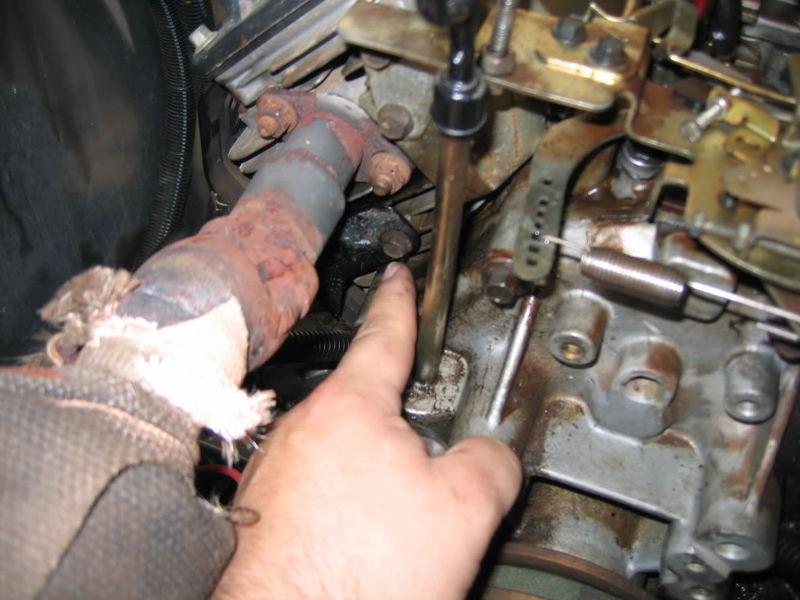

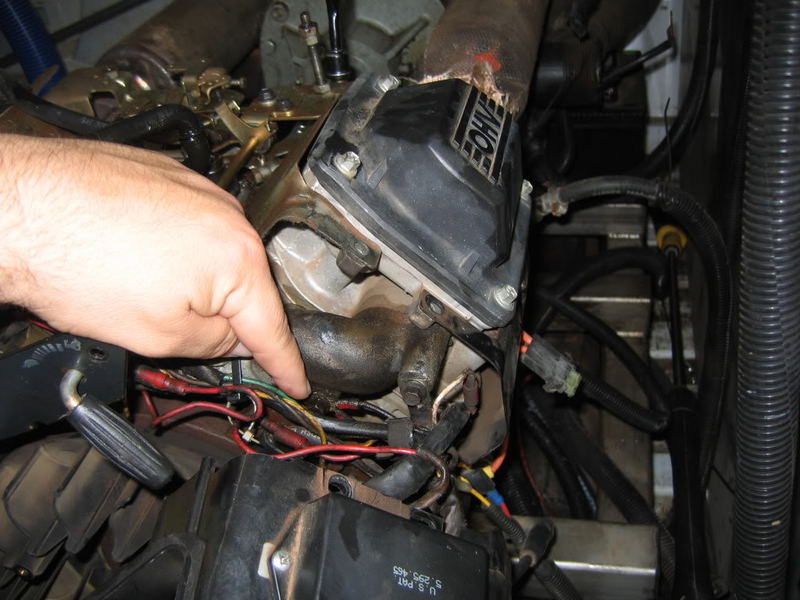

take off the 2 intake manifold bolts.



[Chads]

Re: Blown Head Gasket

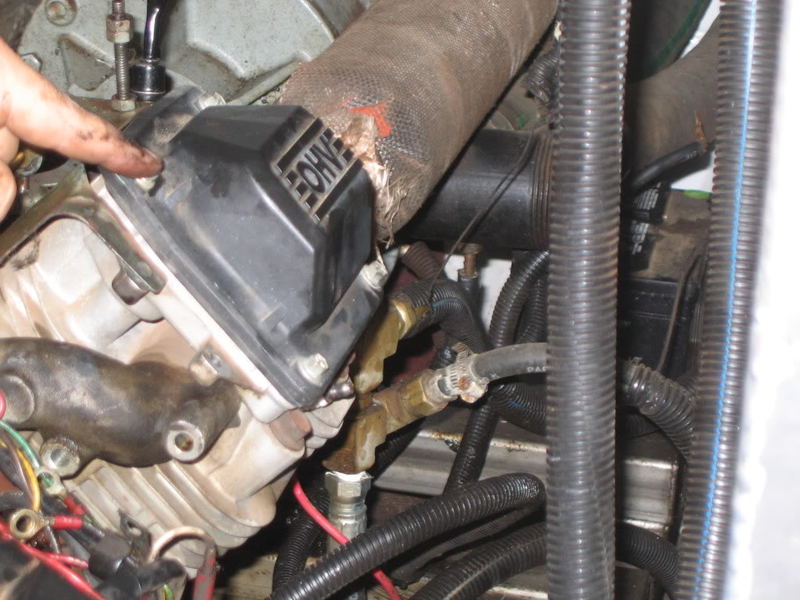

then take off the valve cover.



[Chads]

Re: Blown Head Gasket

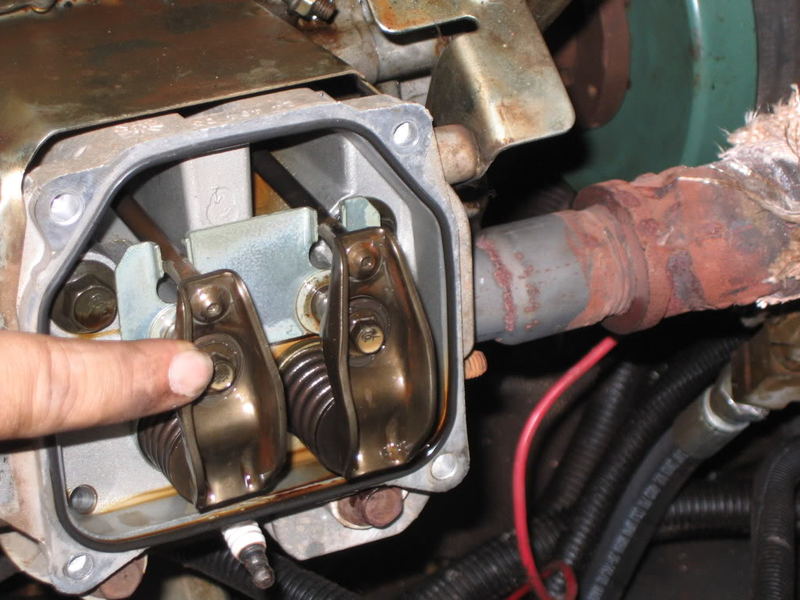

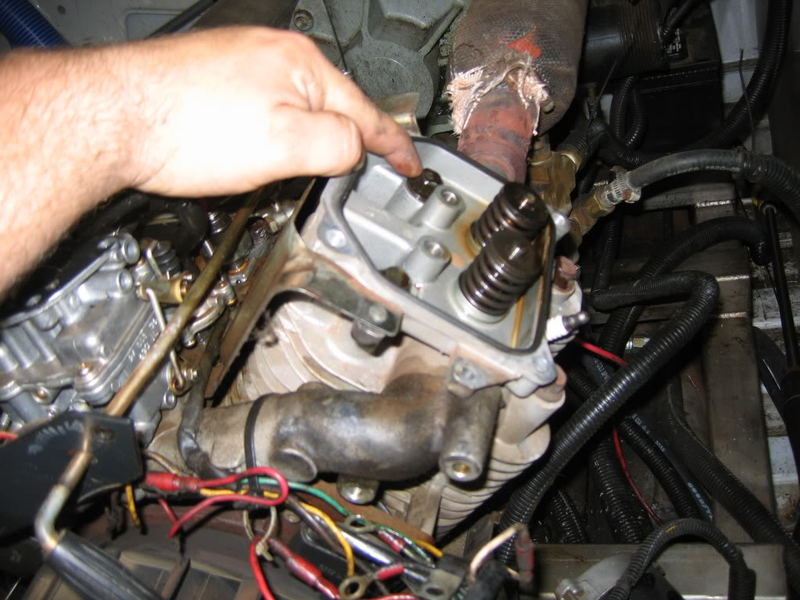

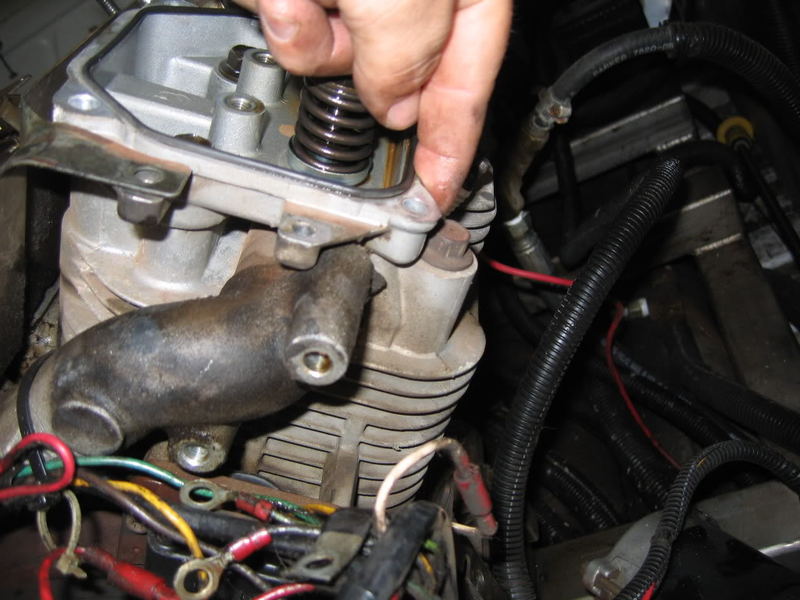

Next is the rocker arms just unbolt them all the way and try to keep them together as a whole little unit and then remove the guide plate.



[Chads]

Re: Blown Head Gasket

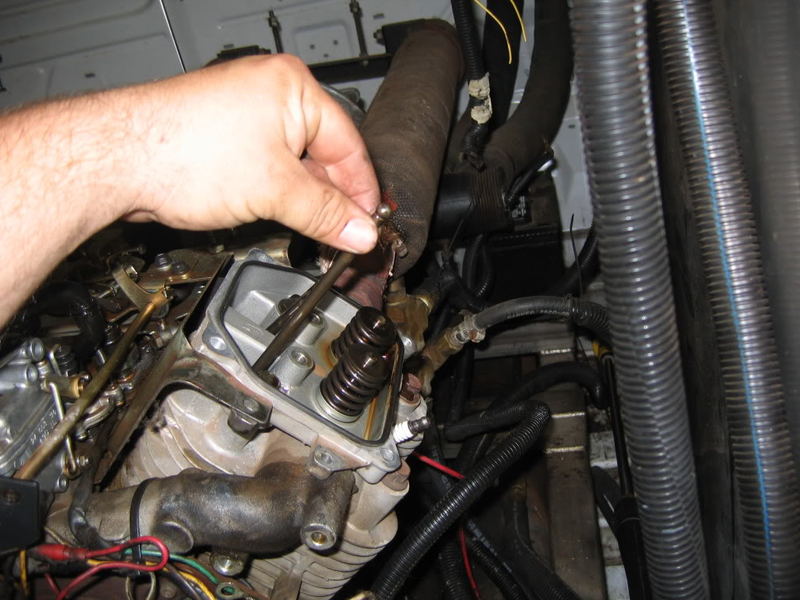

pull out the push rods.



[Chads]

Re: Blown Head Gasket

Un bolt the four head bolts.



[Chads]

Re: Blown Head Gasket



[Chads]

Re: Blown Head Gasket

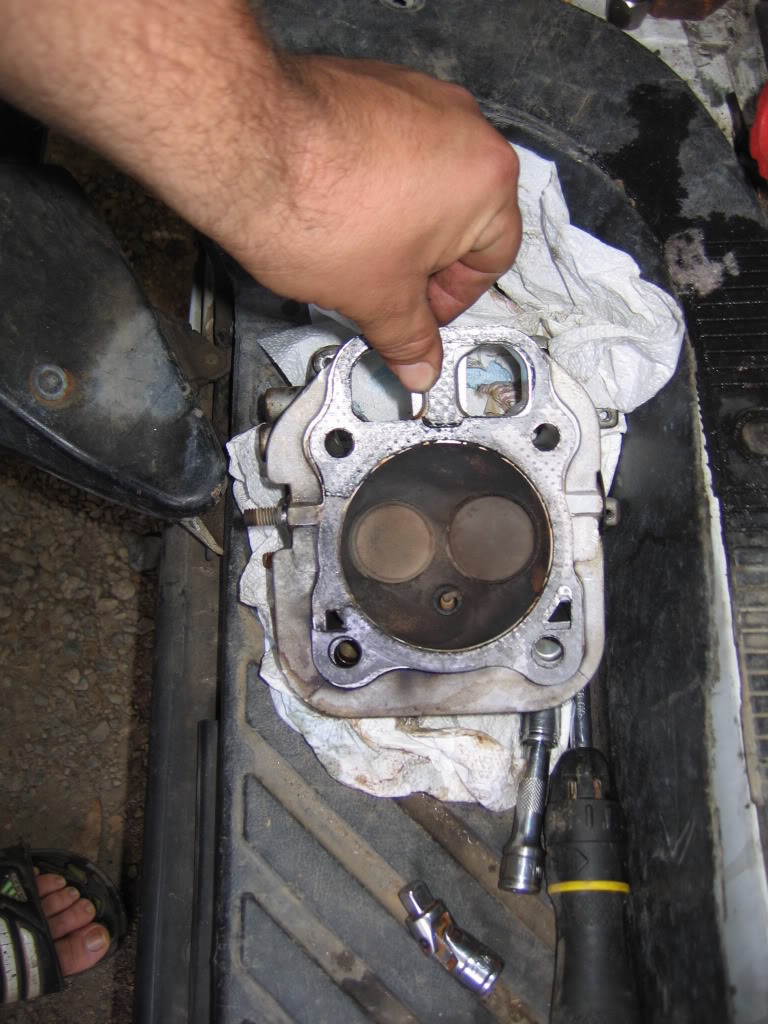

the head shoud be able to come lose just by pulling on it a little backa and forth, this is what the backside of the head looked like with the blown head gasket.



[Chads]

Re: Blown Head Gasket



[Chads]

Re: Blown Head Gasket

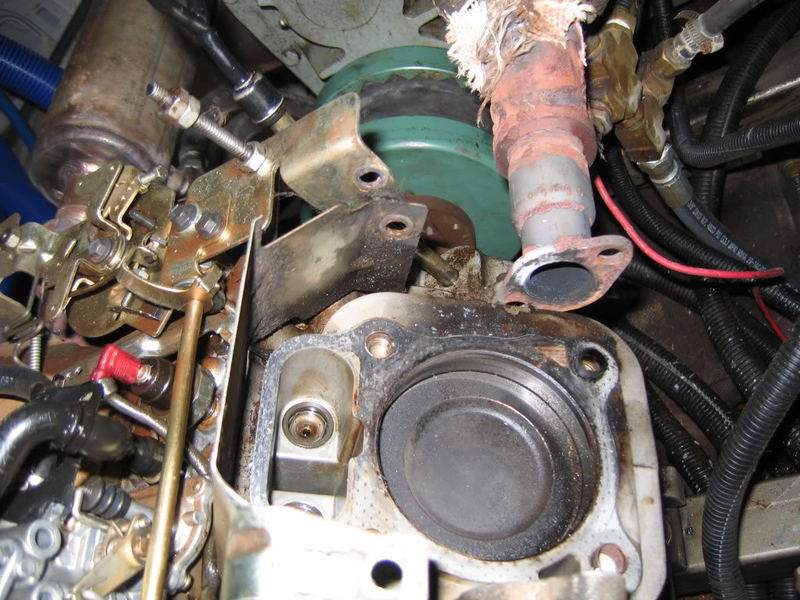

Here is what the top of the block and piston and cylinder look like.



[Chads]

Re: Blown Head Gasket

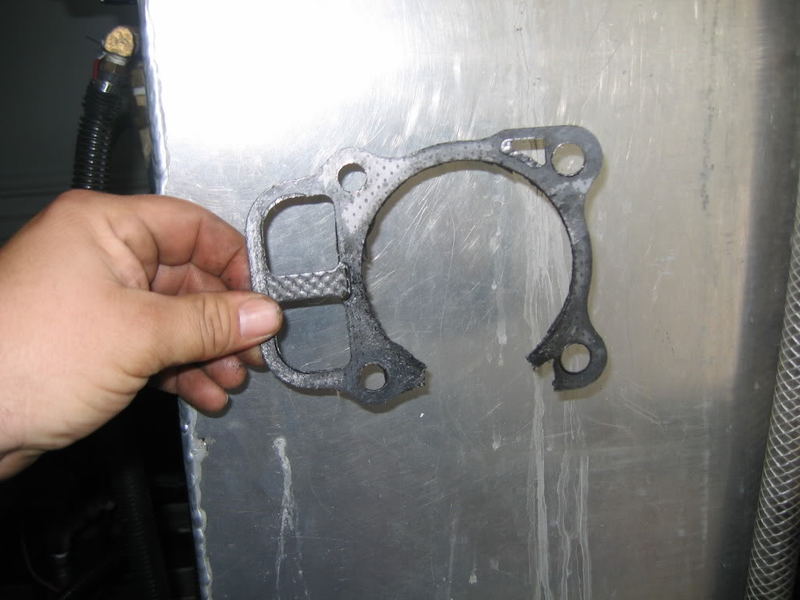

What you do now is manually move the piston up to the top of the cylinder and scrape of all the old gasket material it dosent have to be spotless but do your best to get all the big stuff off and do the same to the head. then you will put the new head gasket and if you get new head bolts use them and just repeat all the process in reverse not forgetting to replace the exhaust gasket and intake gasket. You also need to spin the motor by hand to reset the lifters dont just go and start up the motor.I hope this will help someone.
