Help me set up my box truck floor plan, need pics please.

[Nomad74]

Let me start off with this. I know full well my truck is not new. I'm doing the best I can with what I have. Thank god parts are cheap and plentiful for a 1994 C3500.

So I need some help. I'm hoping some of you will step up and post some pics of the interior of your box's. I'm really impressed with this thread: @ronbeatty

http://mikeysboard.com/threads/anyone-put-side-door-in-box-truck.244322/

So here is what I know I will be doing so far. I'll be installing a 6'H X 5'W Todco roll up door. You can see I have the outline taped off in the picture of where the door will go. I'm also going to mount my electric hose reel out the back of the box on the driver's side. It will be mounted up high and upside-down so I can utilize the space under it. Fresh water belly tanks will be installed under the truck to save inner box space.

I would like some ideas of flooring, lighting, wall covering, shelving, and any pictures you can share of your rigs. Thanks!

Can someone tag Mike Draper for me? I don't know his Mikey's board moniker.

Here is my platform. Try not to beat me up to bad.



[Desk Jockey]

Looks good. Nice and clean you really have a lot to work with. I liked what @HydroDude did with his. McKinley can you post your truck pictures for Damon?



[Nomad74]

Bump, seriously you slow pokes.



[Shawn Abbey]

Here's what we've done..



[Nomad74]

Here's what we've done..

Awesome! I love the hand washing station! Thanks.



[Desk Jockey]

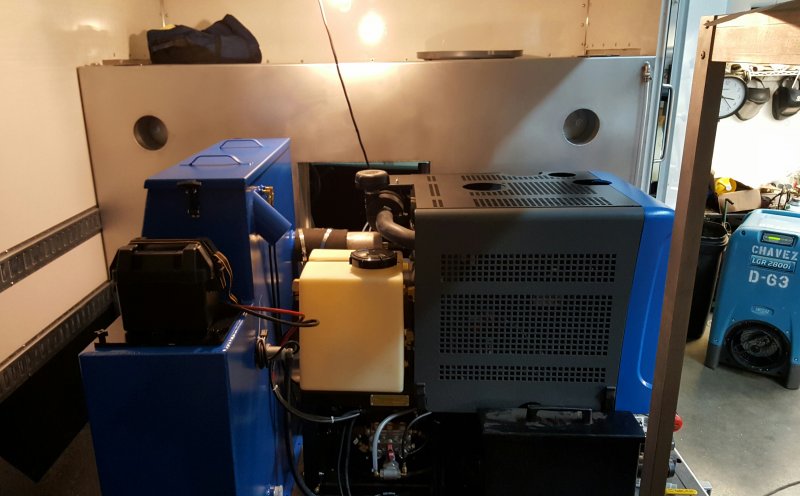

Its not done yet but this is our newest one in progress. 2017 Spartan with cabover. Prochem Everest 650HP.

Waiting on an Oxley narrow, extra tall 300 foot hose reel. It gets branded next Thursday. Done or not. It may have to go back for the solution reel to be mounted.



[Nate The Great]

Its not done yet but this is our newest one in progress. 2017 Spartan with cabover. Prochem Everest 650HP.

Waiting on an Oxley narrow, extra tall 300 foot hose reel. It gets branded next Thursday. Done or not. It may have to go back for the solution reel to be mounted.

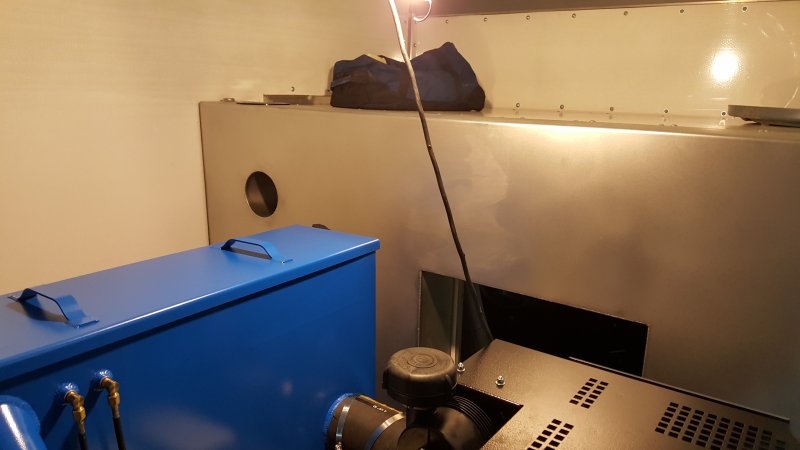

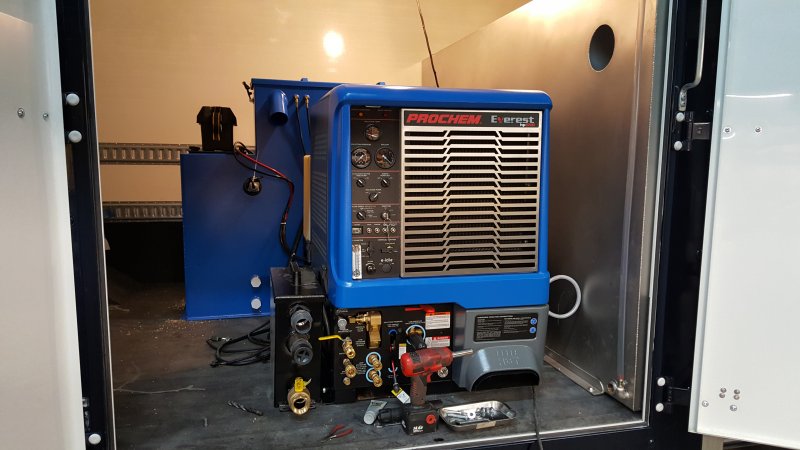

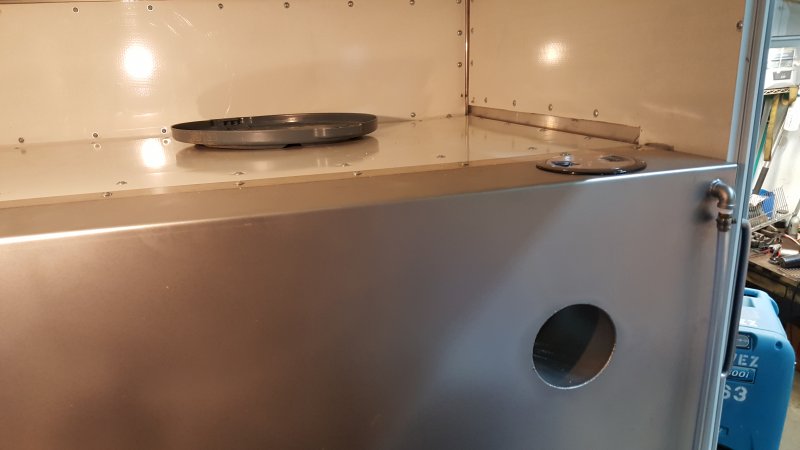

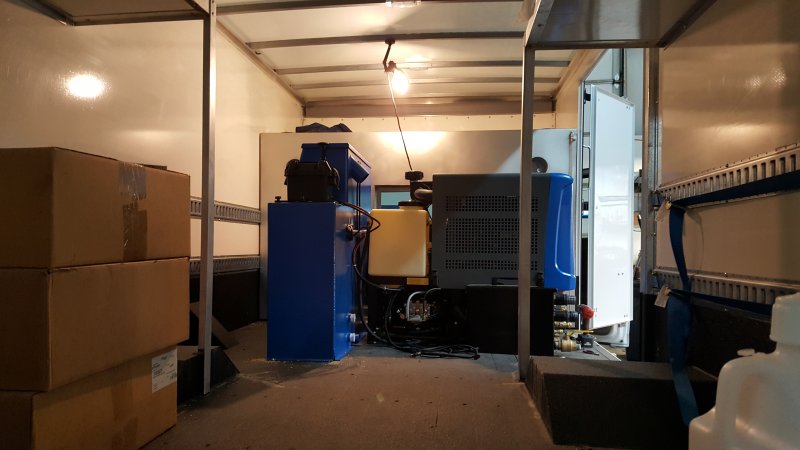

View attachment 69361

View attachment 69362

View attachment 69363

View attachment 69364

View attachment 69365

Is that a on board water tank? Custom made? How big?



[Desk Jockey]

Yes, its a 135 gallon stainless steel. Its only 6 inches wide, has all the baffles, drains and other happy horse shit.



[Desk Jockey]

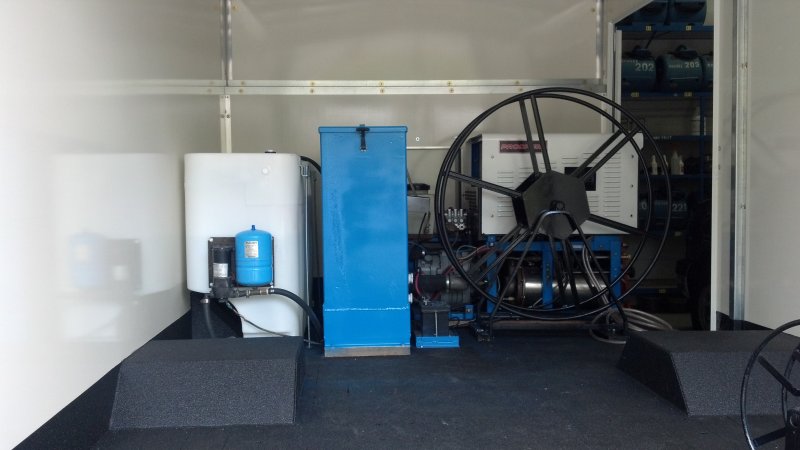

Some of our other box trucks.



[ruff]

Nice trucks.
Richard, on average, how many square feet of carpet cleaning will the 135 gal carry you through?
Also what kind of wand jets (flow) and and pressure you normally run the machines at?



[Nomad74]

I love a clean looking box truck interior. Some of you guys look like you could preform medical operations back there. That is what I want mine to look like. Extra clean. It's the least I can do since my box truck it a bit dated. But overall it's in good shape and straight.



[Desk Jockey]

Nice trucks.
Richard, on average, how many square feet of carpet cleaning will the 135 gal carry you through?
Also what kind of wand jets (flow) and and pressure you normally run the machines at?

Depends on condition and what they are cleaning. 1500??
PC Quad at 600psi or Zipper or Zipper spinner.



[Nate The Great]

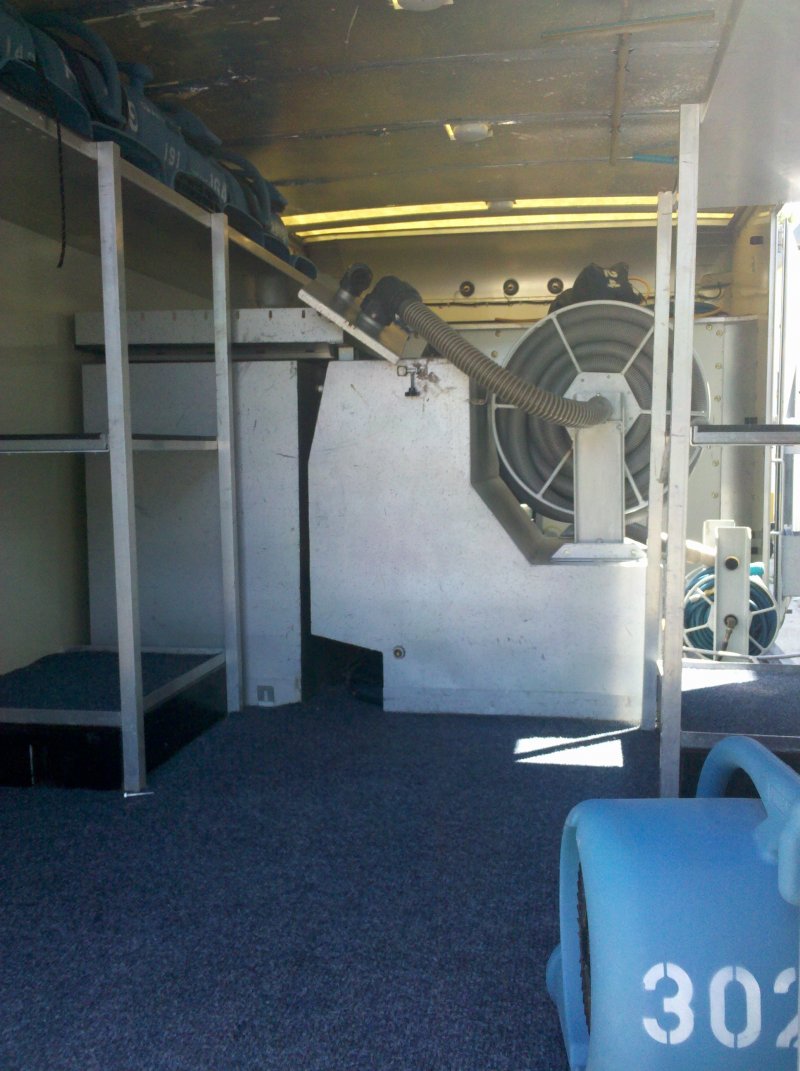

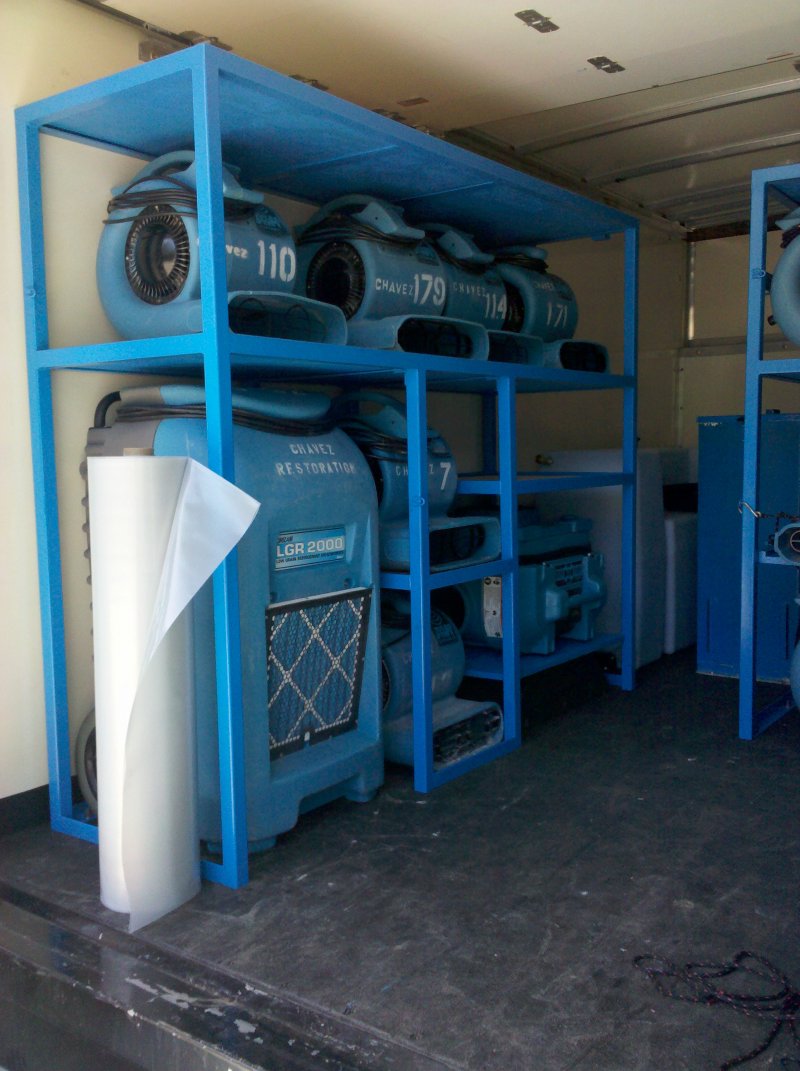

Some of our other box trucks.

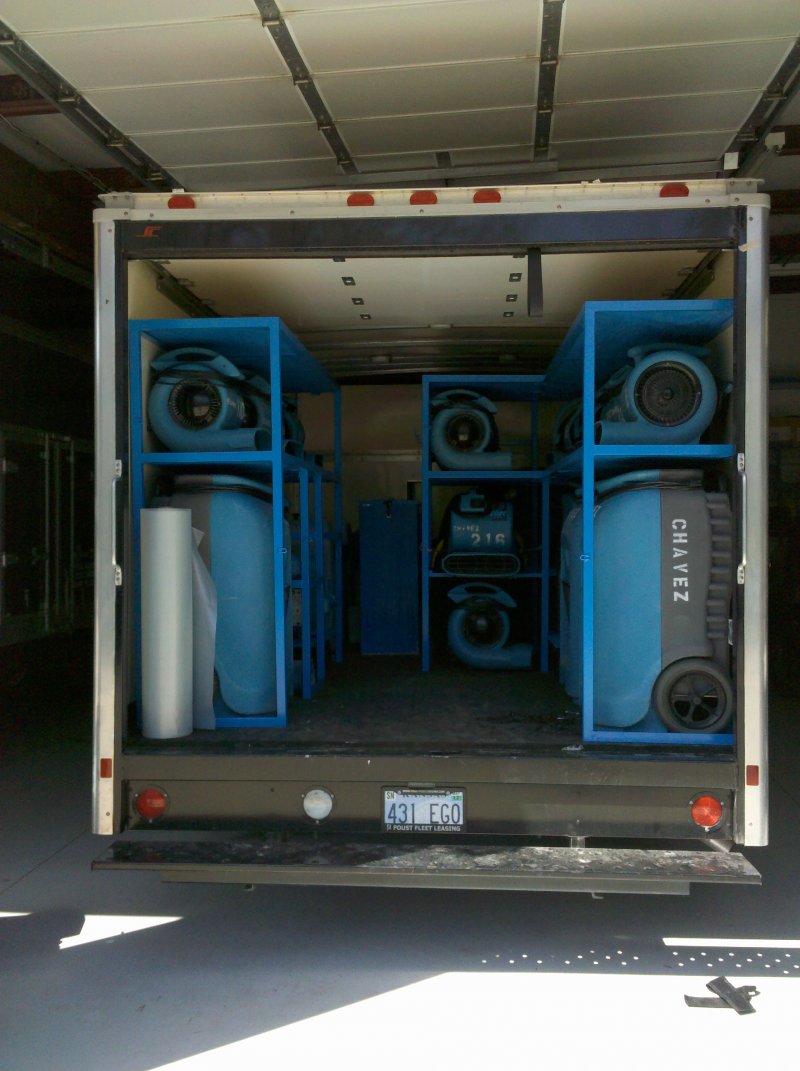

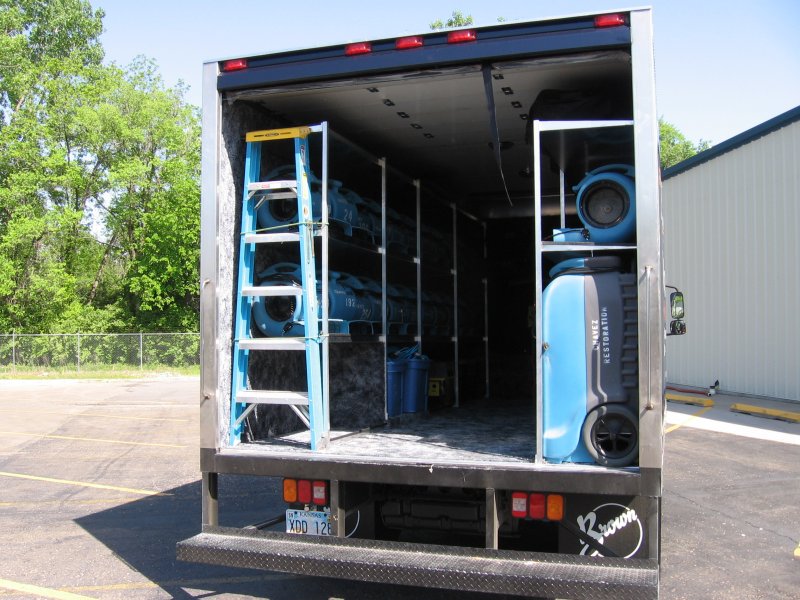

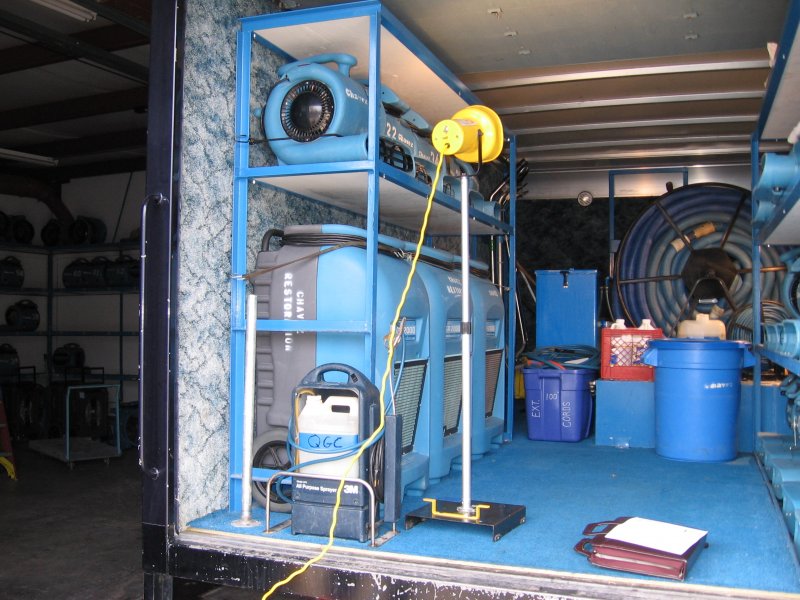

View attachment 69366

View attachment 69367

View attachment 69369
View attachment 69371
View attachment 69373

View attachment 69372

This is no Richard swinging contest... but you win...



[clean image]

Richard,

Is that a cut out in water tank for cab access?


My 250 oaxly reel, although pretty blue, and looks very well constructed, falls short of holding 250'. The downside of the narrow I see is trying to get the perfect roll up. I chastised my employee saying he rolled up wrong, then I couldn't do either.....



[Desk Jockey]

Yes the cut out allows the distributor access to that side of the unit.

Being jammed for space the 16 inches wide made more sense if we can get at least another 50 feet on it. Its supposed to be 300 but I'll take the 250.



[smart n kleen]

Let me start off with this. I know full well my truck is not new. I'm doing the best I can with what I have. Thank god parts are cheap and plentiful for a 1994 C3500.

So I need some help. I'm hoping some of you will step up and post some pics of the interior of your box's. I'm really impressed with this thread: @ronbeatty

http://mikeysboard.com/threads/anyone-put-side-door-in-box-truck.244322/

So here is what I know I will be doing so far. I'll be installing a 6'H X 5'W Todco roll up door. You can see I have the outline taped off in the picture of where the door will go. I'm also going to mount my electric hose reel out the back of the box on the driver's side. It will be mounted up high and upside-down so I can utilize the space under it. Fresh water belly tanks will be installed under the truck to save inner box space.

I would like some ideas of flooring, lighting, wall covering, shelving, and any pictures you can share of your rigs. Thanks!

Can someone tag Mike Draper for me? I don't know his Mikey's board moniker.

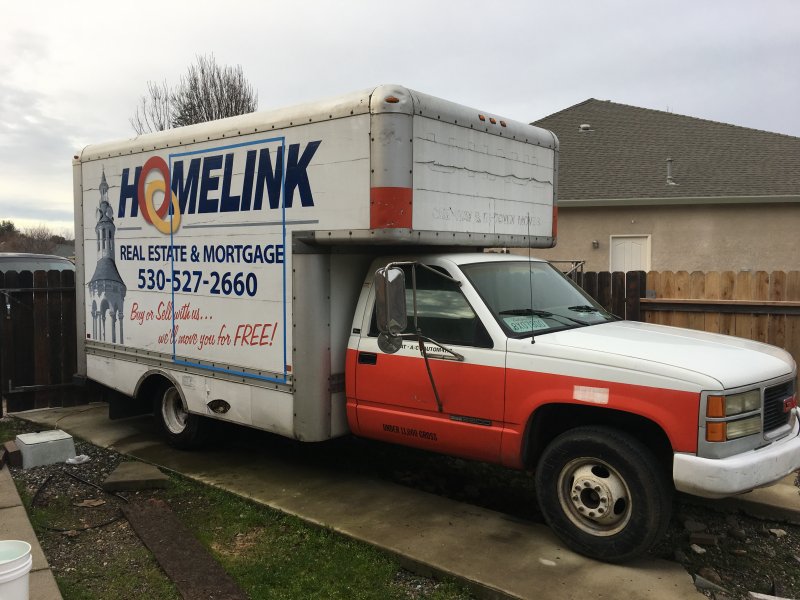

Here is my platform. Try not to beat me up to bad.

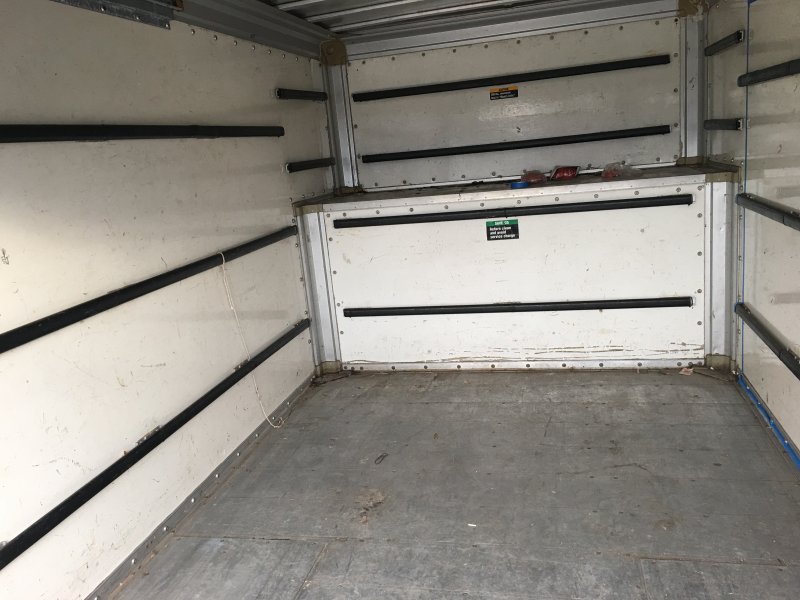

View attachment 69343 View attachment 69342

I'd send you pictures but I don't think you could handle my truckmount porn. If I were you I'd put sliders under you machine and move it around to see where you like it. Then design it around the machine.



[Nomad74]

I'd send you pictures but I don't think you could handle my truckmount porn. If I were you I'd put sliders under you machine and move it around to see where you like it. Then design it around the machine.

I already know where the machine is going. That s why I have the side door. I know you think I'm manly but sliding a 870 around at will is not something I'm going to do.



[smart n kleen]

I already know where the machine is going. That s why I have the side door. I know you think I'm manly but sliding a 870 around at will is not something I'm going to do.

You won't believe how easy it is with the sliders. I had a powerclean diesel and it slid around pretty easy with sliders. BTW, I don't think of you that way much any more lol.



[Nomad74]

You won't believe how easy it is with the sliders. I had a powerclean diesel and it slid around pretty easy with sliders. BTW, I don't think of you that way much any more lol.

I've got the tm figured out. Once the door gets in, things should happen fast. I don't have a lot of time to dink around. Once a bolt gets loosened on the 870, it will be all assholes and elbows to get it done. I can't have much downtime.



[JS41035]

Love that stainless tank. I'm inspired



[Nate The Great]

@Desk Jockey I assume it's a space issue but it looks like you guys rather have swing doors for a side door than a rollup?

My good friend who works for Penske Trucks tell me the maintenance aspects of having a rollup door... I'm going for a swing door, less to go wrong and it's cheaper also..



[Shane T]

Looks like that truck is already sagging in the rear. Those U-Hauls are not built to haul a lot of weight. I would consider installing a set of air bags in the rear at least.



[Nomad74]

Looks like that truck is already sagging in the rear. Those U-Hauls are not built to haul a lot of weight. I would consider installing a set of air bags in the rear at least.

Actually. It isn't sagging at all in fact it's leaning forward. Maybe the ground skirt makes it look like it's sagging.



[jwfoulk12]

Yes, its a 135 gallon stainless steel. Its only 6 inches wide, has all the baffles, drains and other happy horse shit.

Very interested in hearing the details on this. What did it cost? Why did you go stainless over say Polly? Very Smart use of space in my opinion!



[Desk Jockey]

I assume it's a space issue but it looks like you guys rather have swing doors for a side door than a rollup?

The Butler in a box has these same style doors which allow more storage. You also get more height without the roll up. Of the (5) boxes with TM's (3) are roll up.



[Desk Jockey]

Very interested in hearing the details on this. What did it cost? Why did you go stainless over say Polly? Very Smart use of space in my opinion!

Money you have it, you spend it, you don't have it. Its all an illusion!

I don't really know. They told me $1,600.00 but the truck isn't done yet so we have received the final invoice.

I would have went poly had they had a similar design. I needed as narrow floor space as I could get. My distributor suggested custom build. I said sure why not. It saved a bunch of room.



[jwfoulk12]

I'm definitly wanting custom tanks in my next rig so I am weighing all my options and trying to decide what is best.



[Desk Jockey]

I wish I'd have done it on all the other trucks now.



[Lee Stockwell]

My dad helped me make a very custom ss tank in one afternoon, decades before I heard it was impossible.
