How have your van /truck layout improved over the years?

Mikey P

Administrator
Joined
Oct 6, 2006
Messages
114,679
Location
The High Chapperal

1. Assess Your Equipment Needs

Before deciding on the layout, take inventory of your equipment:
  • Extractor Options: PTO/CDS, Slide-In, Portable
  • Fresh & Waste Water Tanks
  • Hose Reels
  • Protective Equipment: Tarps, Runners, Cornergards etc
  • Accessory Machines: Vacuums, CRBs, Rotary Extractors, etc.
  • Hand Tools: Wands, Upholstery Tools, Grooming Tools, etc.
  • Sprayers & Buckets
  • Emergency Supplies: First Aid Kit, Repair Tools, etc.

2. Categorize Your Equipment

Group your equipment based on frequency of use and size:
  • Frequently Used (accessible at all times): Wands, upholstery tools, CRBs, sprayers, etc.
  • Medium-Use (need to access occasionally, but not every job): Extractor, Rotary Extractor, vacuum, hose reels.
  • Rarely Used (emergency or backup equipment): Tarps, first aid kits, machine repair tools, carpet repair tools.

3. Organizing the Vehicle Layout

For an efficient layout, ensure that the most frequently used tools are the most accessible without needing to dig through everything else. A well-organized vehicle can help save time, avoid mistakes, and improve productivity. Here's a potential blueprint for different vehicle layouts:

A. Vehicle Design Overview

  1. Driver’s Side/Front Section
    • This is often the easiest place for quick-access tools. You might want to install a small shelving unit or hanging rack near the door or at the front of the vehicle. Tools like spray bottles, grooming tools, and first aid kits could be stored here.
  2. Middle Section
    • Primary Extractor or Portable Extractor: If you have a large machine, consider a slide-out tray or mounting system so it can easily be pulled out when needed. This can be located near the center of the vehicle for balance.
    • Vacuum Cleaner: If it’s not built-in, store it in a quick-access compartment, maybe with a slide-out or wall-mounted hook.
    • Water Tanks: Fresh and waste water tanks can be mounted toward the rear or bottom of the vehicle, possibly with quick-connect hoses to ensure easy draining and filling.
    • Hose Reel: Hose reels are heavy and bulky, so having them on a slide-out tray or near a door for quick deployment is crucial.
  3. Rear Section
    • Storage Shelving: This is where your CRBs, rotary extractors, and backup machines can go. Ideally, they should be secured in a way that prevents damage but still accessible.
    • Toolbox/Repair Tools: You can dedicate a section for a toolbox that holds your repair equipment, spare parts, or emergency supplies like tarps, gloves, and cleaning solutions.
    • Buckets: These can be stored in accessible, but less frequently used areas, like under benches or behind larger equipment.
  4. Additional Features
    • Slide-out drawers: Great for keeping smaller items like upholstery tools, wands, sprayers, and other hand tools organized and easy to grab.
    • Hanging Racks: Consider hanging hooks for things like wands, brushes, or even small tools like screwdrivers.
    • Ramps or Lift Gates: If you need to load heavy equipment, consider a rear lift gate or side door ramp that can help you load and unload easily without overexertion.

B. Vehicle Layout Blueprint Example

Here’s a simplified sketch of how this layout might look:
markdown
Copy code
-------------------------------------------------------
| DRIVER SIDE AREA |
|-----------------------------------------------------|
| - Small tool rack (sprayers, first aid kit, brushes) |
| - Quick-access shelves (for grooming tools, etc.) |
-------------------------------------------------------
| CENTER OF VEHICLE (Main Storage Area) |
|-----------------------------------------------------|
| - Slide-out tray for extractor |
| - Wall-mounted vacuum cleaner (if applicable) |
| - Water tanks (fresh and waste) |
| - Hose reels (mounted on tray or slide-out) |
-------------------------------------------------------
| REAR AREA (Heavy Equipment & Backup Tools) |
|-----------------------------------------------------|
| - Shelving for CRB, Rotary Extractor, spare machines|
| - Toolboxes for repairs |
| - Buckets (stored under other equipment or on shelf)|
-------------------------------------------------------

4. Key Tips for Efficiency

  • Accessibility is Key: Any tool or equipment you use often should be immediately accessible from the door or the rear of the vehicle. If possible, don’t put frequently used items at the back of the vehicle where you’ll need to climb over or dig through other tools.
  • Weight Distribution: When planning your layout, try to balance the weight in the vehicle. Place heavier items (water tanks, extractors) near the center or closer to the vehicle’s wheelbase to prevent imbalance during driving.
  • Organization and Labeling: Once the equipment is organized, label every compartment or tool. It might sound small, but it makes a huge difference in a busy workday.
  • Modularity: Consider modular shelving or adjustable racks that allow you to easily change the layout as your needs evolve. Modular systems let you accommodate different sized equipment and can be more flexible for future changes.
  • Consult Others: As you mentioned, reaching out to other professionals in the field can help you identify common pitfalls and best practices. Forums, social media groups, or professional associations for cleaning service providers might be a good resource.

5. Testing the Layout

Once you've created the layout, consider testing it out. Think about a typical workday and do a "trial run" loading, unloading, and setting up your vehicle. If any part of the layout feels awkward or time-consuming, tweak it before committing fully.

By carefully planning the layout and accessibility of your tools and equipment, you can create a more efficient, organized work environment that allows you to perform your job faster and more professionally.


  • Like
Reactions: Jim Pemberton

MarkieMark

Member
Joined
Apr 4, 2024
Messages
56
Location
Texas
Name
Mark Franco

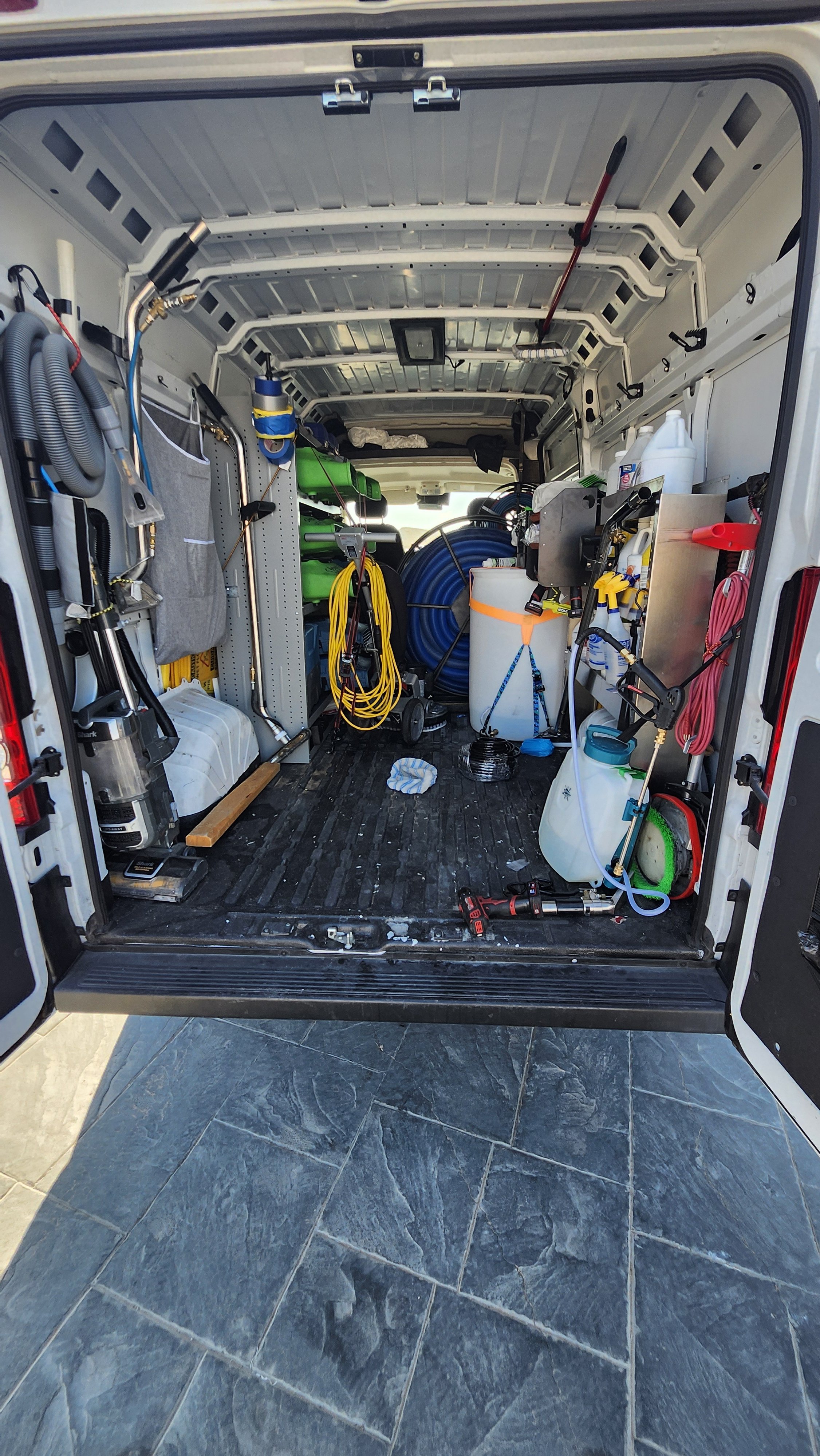

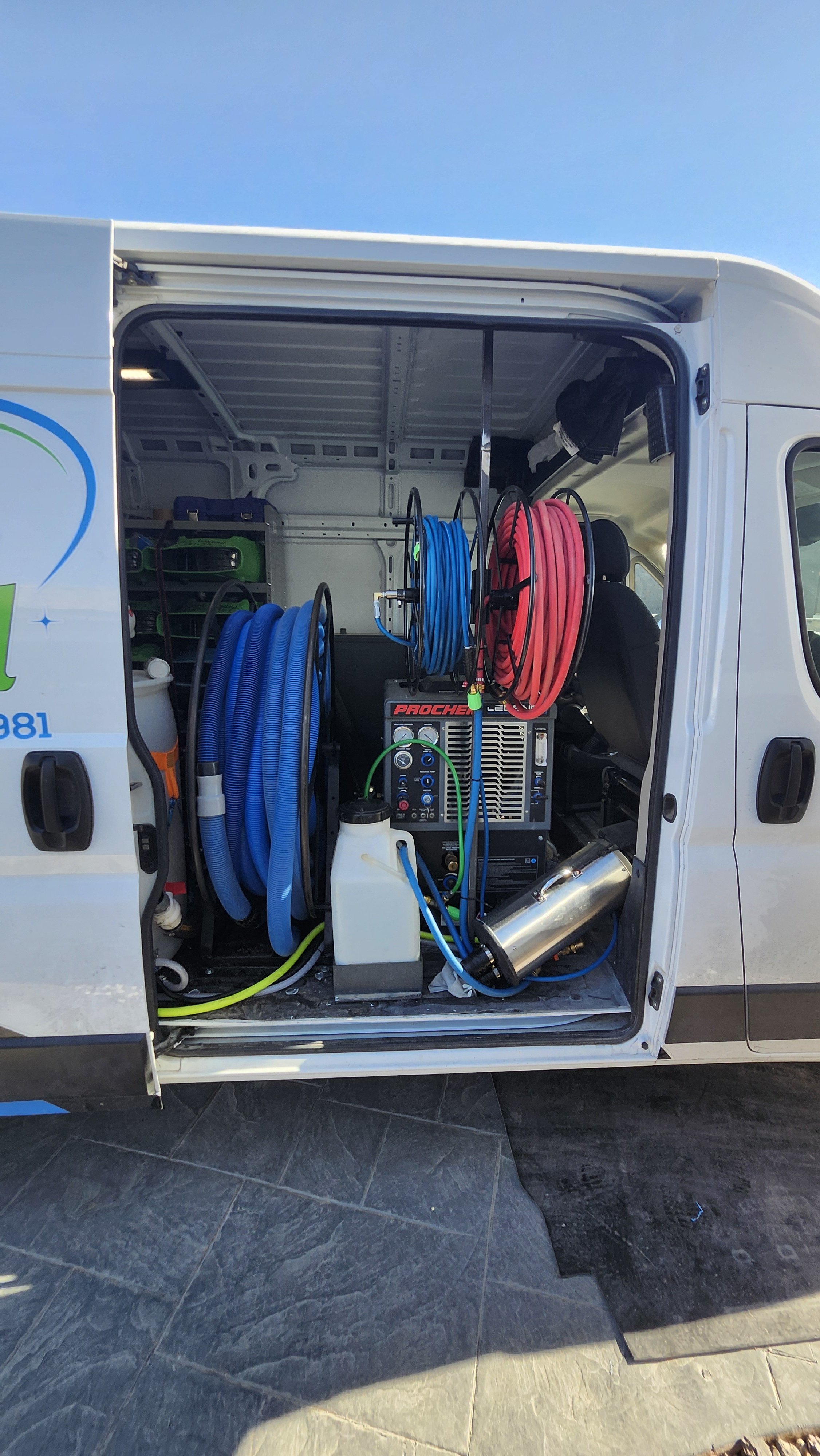

My van layout is tweaked to perfection, just about. I like the rear hose reel on my other vans but this one is setup to get as much space for the orbot, portable, and restoration equipment. Notice the CRB is missing from this van *Cough*Cough* auction*cough.

20241009_155731 (1).jpg 20241009_155812 (1).jpg
