Side mount but want to have a rear hookup option?

[Desk Jockey]

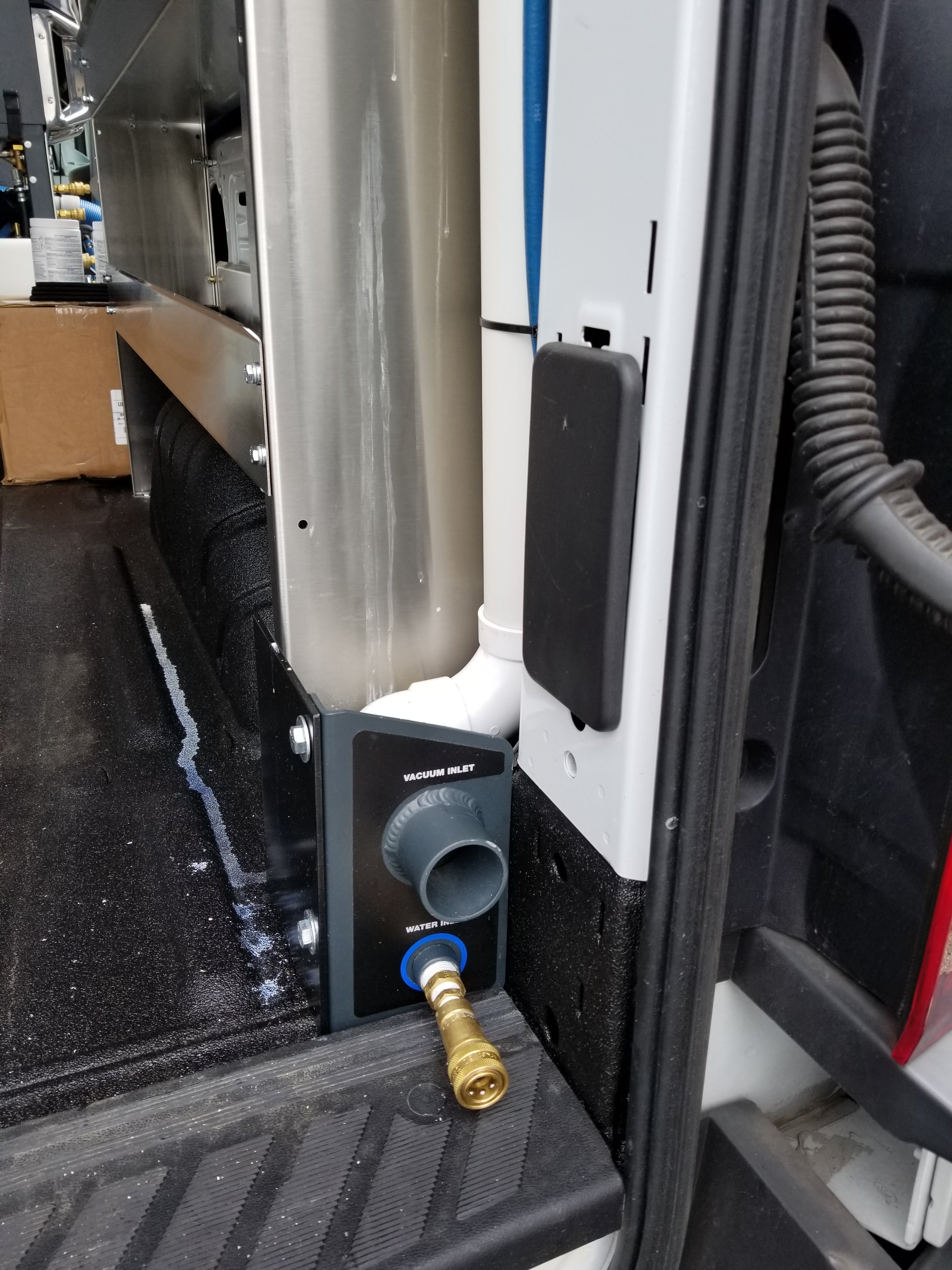

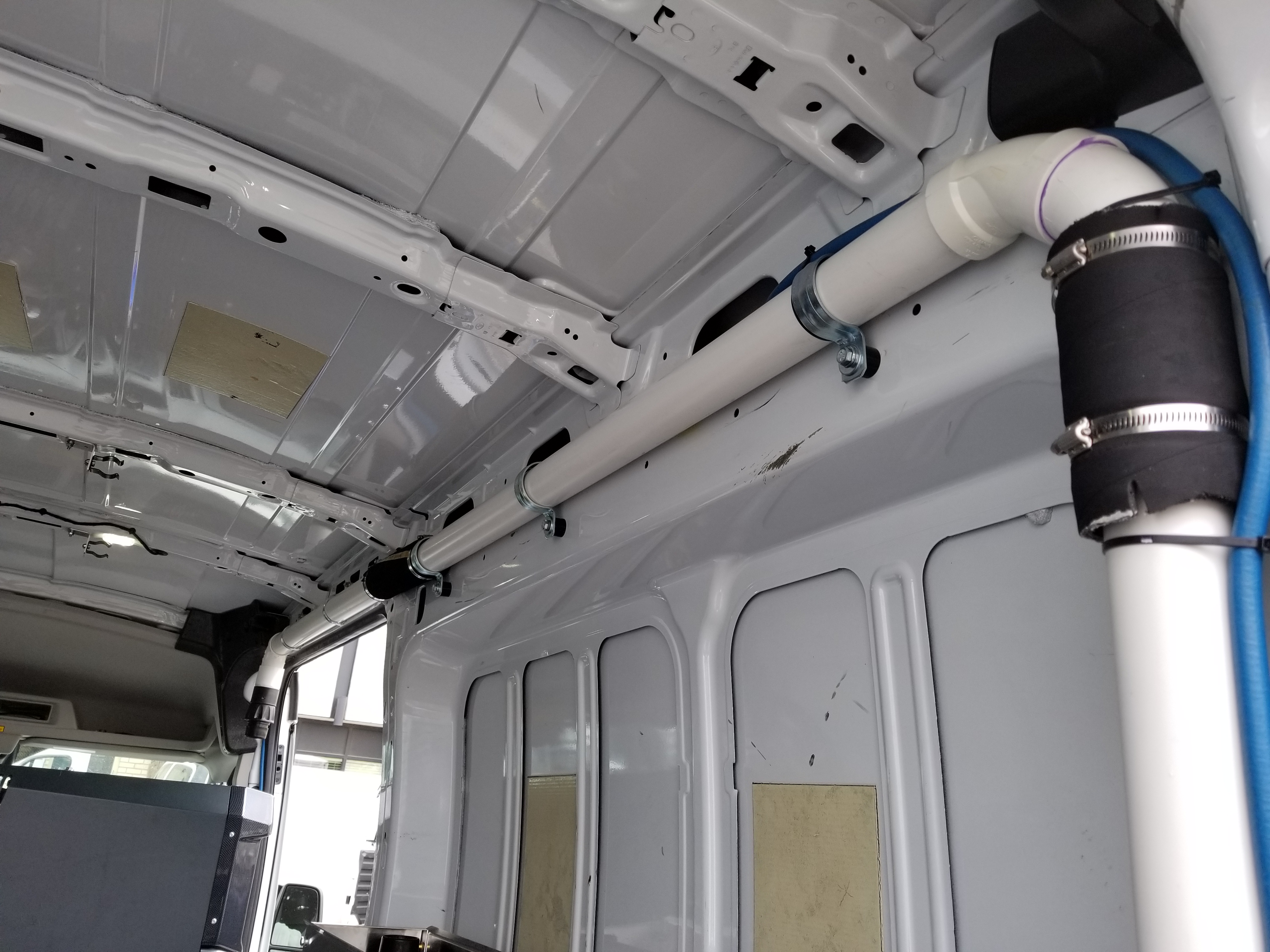

Here is an idea from BJ at Prochem. He had clients that wanted to have the rear hookup option.

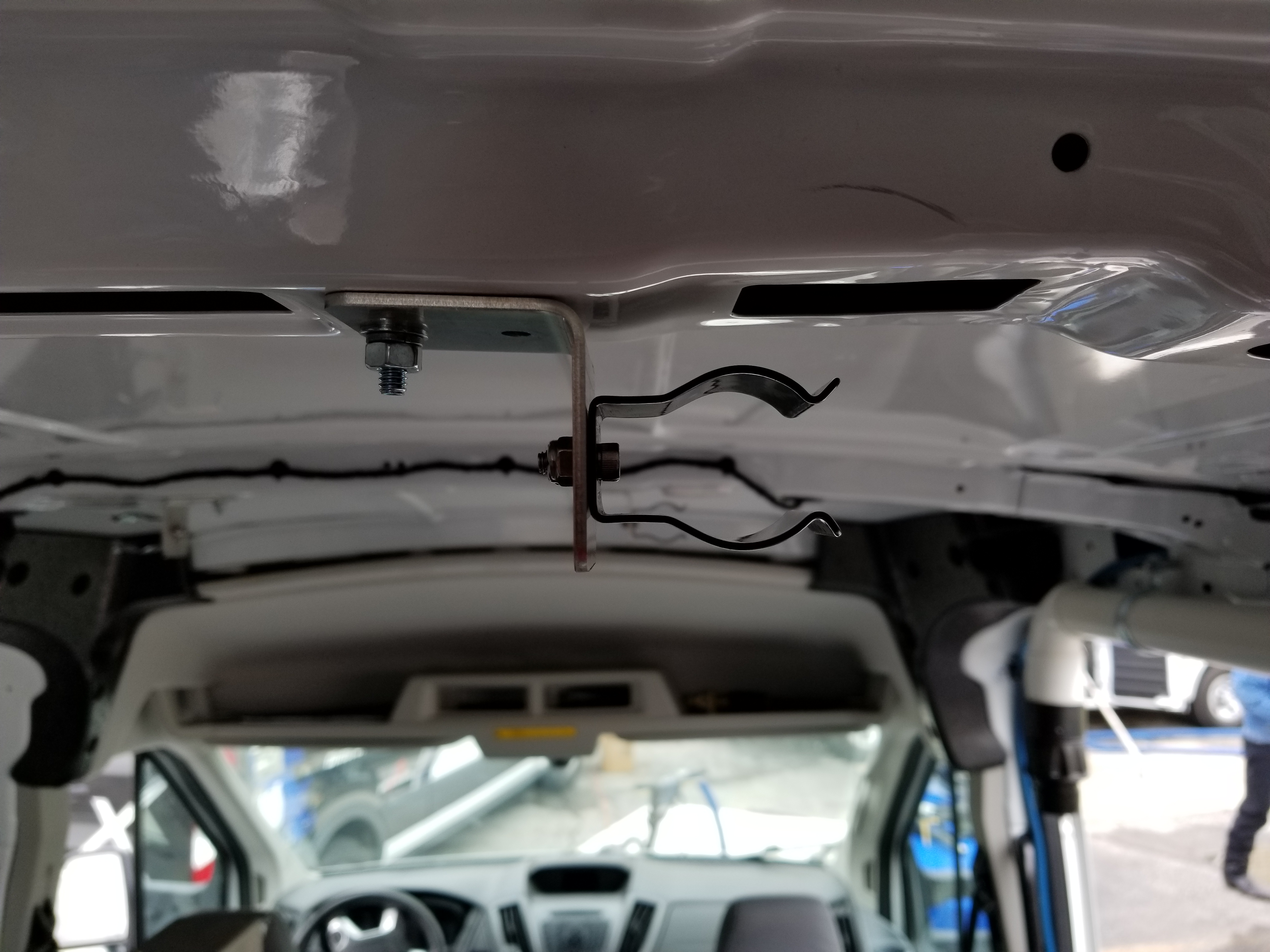

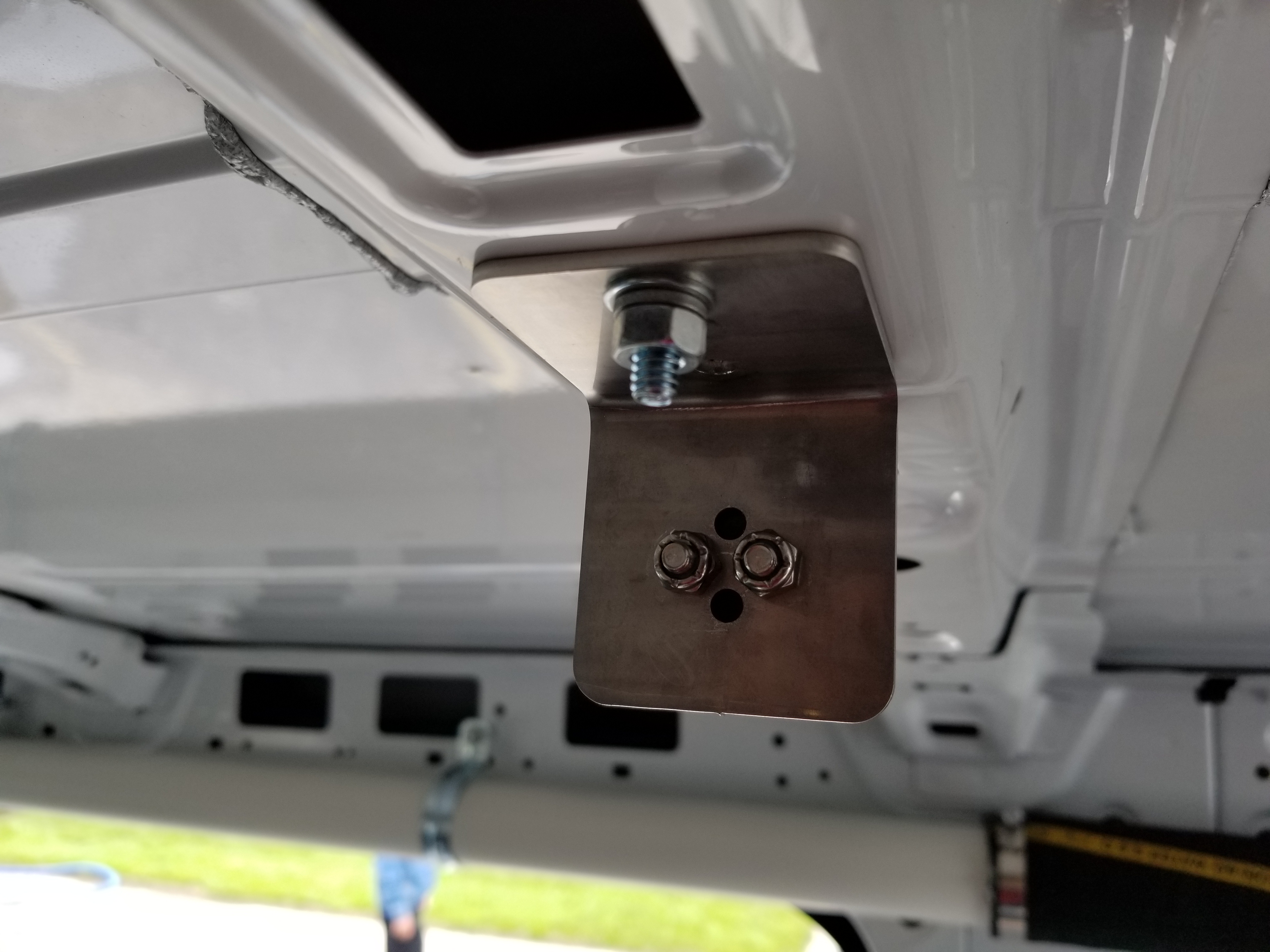

He also did a nice job with the L brackets for his hangers.

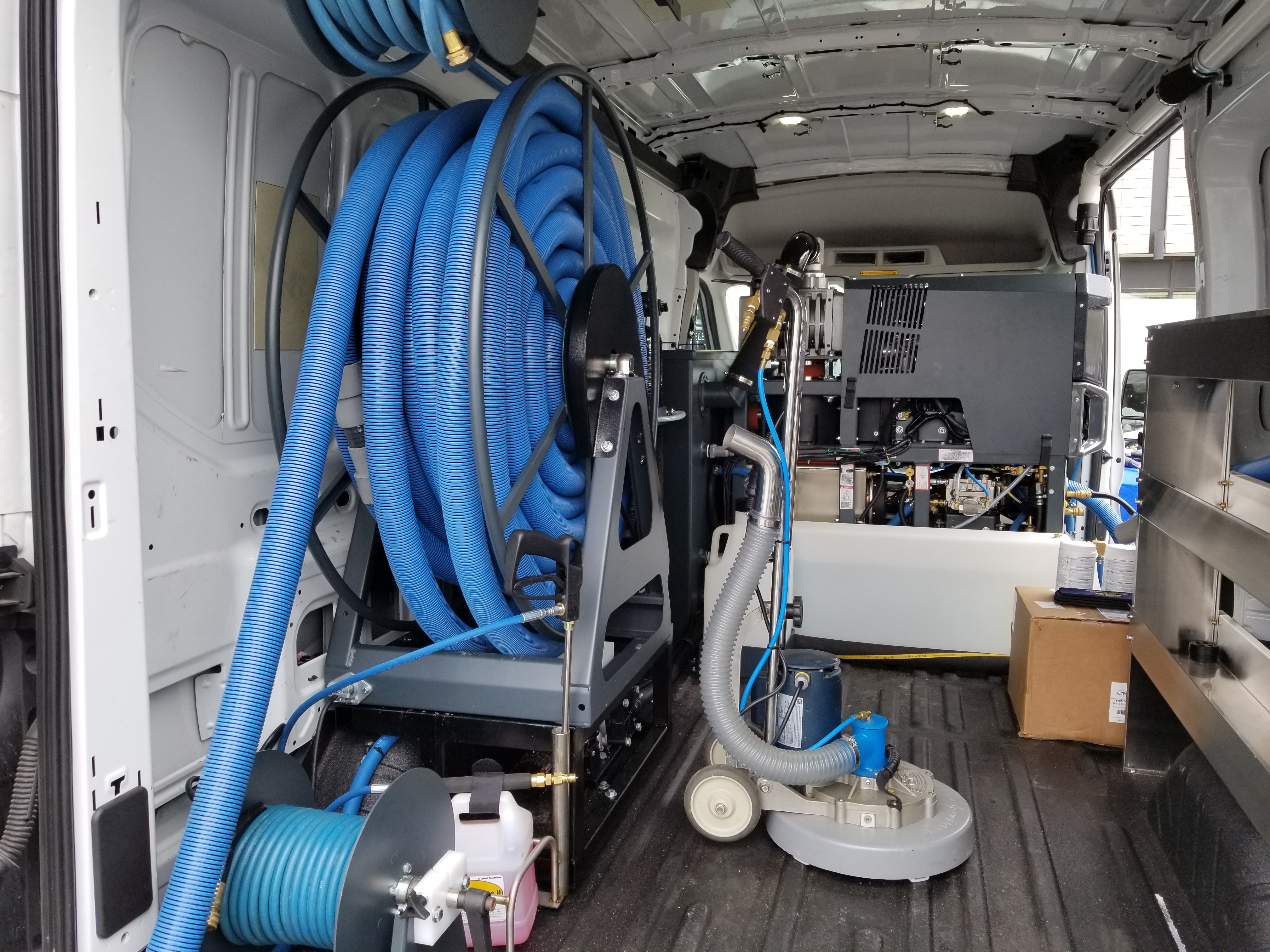

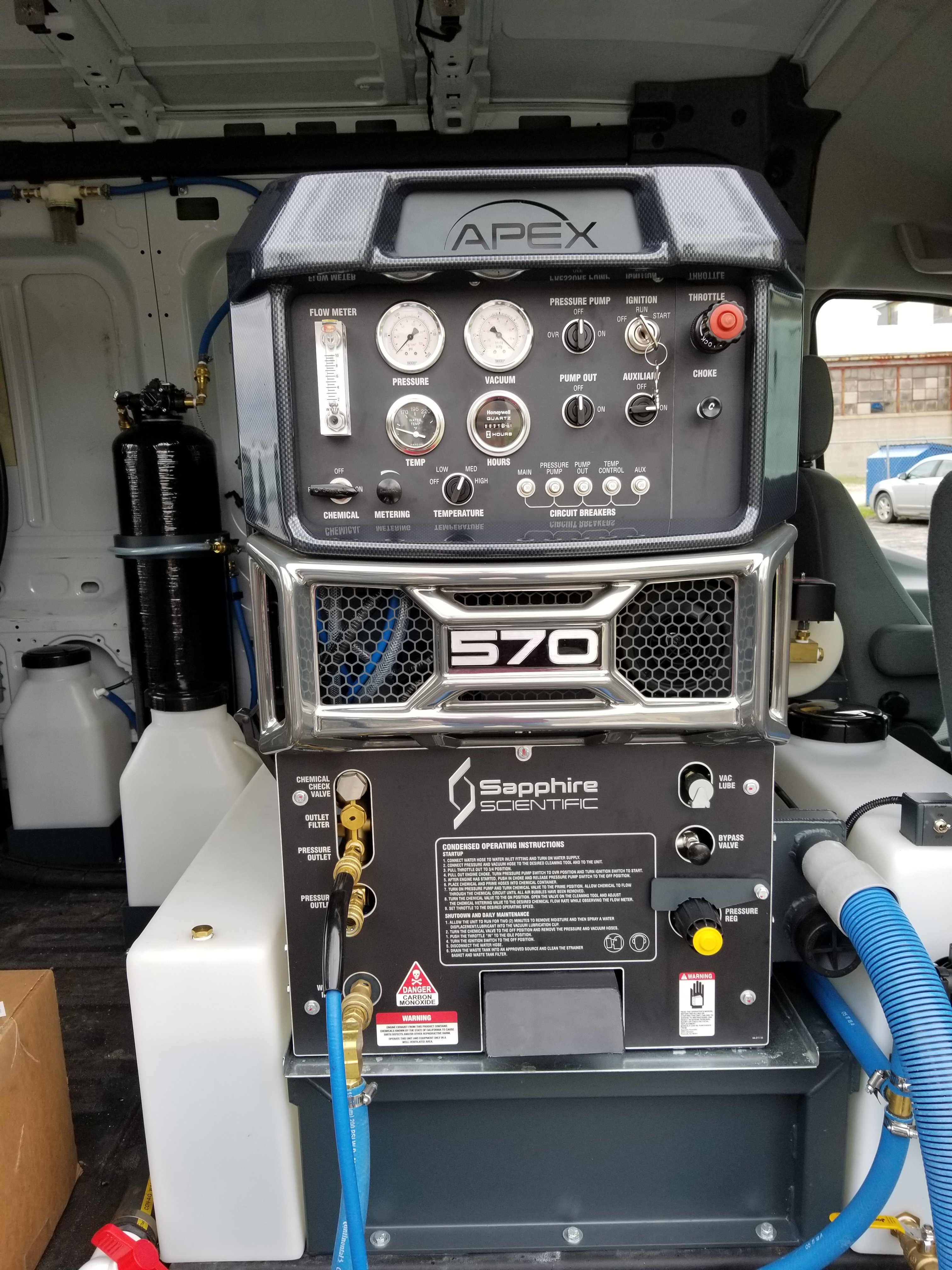

Side mounted unit.



[DAT]

That doesn't affect airflow?



[Desk Jockey]

That doesn't affect airflow?

Its such a short distance, no it doesn't.



[DAT]

Neat. I just wasn't sure about thoses 3 90° bends.



[Trip Moses]

Here is an idea from BJ at Prochem. He had clients that wanted to have the rear hookup option.
He also did a nice job with the L brackets for his hangers.

Side mounted unit.

View attachment 90657View attachment 90658View attachment 90659View attachment 90660View attachment 90661

From the sound of the thread title I too was in the rubber room. I like it. May do that



[Chris A]

Saw that truck in Cleveland, it is a nice setup



[Desk Jockey]

One more.



[hogjowl]

I like the versatility



[Cleanworks]

I like the versatility

Yep, you could nap in the front or the back



[hogjowl]

Why do you Canadians even try?



[Mikey P]

Needs way more storage



[Mikey P]

Why do you Canadians even try?

#27



[Desk Jockey]

Needs way more storage

It's not bad. A tall boy, you could add more storage if you wanted plus it had the submount water tank. A real benefit if freezing winter weather states.



[Desk Jockey]

I'd insulate the walls and ceiling. Plywood to protect the side skin and luan board for the ceiling. Paint the ceiling and carpet the plywood. It could be a pretty nice rig.



[roro]

Dr Google tells me luan board is plywood.
Idiot
(1st time I've ever been able to say that)



[Desk Jockey]

LOL
It's really thin and flexible. It's easier to work with overhead and no need for the thicker plywood in that spot.

We made templates on the first Transit to save time as we put the others together. With all the strange bump outs and curves it was worth doing.



[jcooper]

Looks like a plumber built it.



[Nomad74]

This was so last week. Chavez, you really need to get on Facebook. Laura the Prochem girl is on there.



[Desk Jockey]

View attachment 90672


Looks like a plumber built it.

I agree. lol



[Desk Jockey]

This was so last week. Chavez, you really need to get on Facebook. Laura the Prochem girl is on there.

Naww that girl is just trouble.

Besides the girl can't line dance for shit! I knew she wasn't perfect.



[Desk Jockey]

It would be like cats and dogs fighting. Totally unnecessary and people would get bored with it.



[DAT]

I agree. lol

I was trying not to be rude.



[Desk Jockey]

I was trying not to be rude.

When I saw it I thought it was unnecessary. However many cleaners there loved it. So, what do I know??? IDIOTS!



[DAT]

When I saw it I thought it was unnecessary. However many cleaners there loved it. So, what do I know??? IDIOTS!

If it was me, i wouldve used in place a 2.5 hose instead of plumbing all that...



[Dolly Llama]

It could be a pretty nice rig.

lta



[Desk Jockey]

How about this one?



[Bob Savage]

I have a side and rear hookup with my slide-in, but it is for dual wands. Is that PVC 2" or 2.5"?

I don't see any advantage to have the rear hookup in a single wand situation.

Is that a dual wand setup because I know that machine is definitely capable of dual wands.



[hogjowl]

You old fart



[Desk Jockey]

I have a side and rear hookup with my slide-in, but it is for dual wands. Is that PVC 2" or 2.5"?

I don't see any advantage to have the rear hookup in a single wand situation.

Is that a dual wand setup because I know that machine is definitely capable of dual wands.

Not sure. I didn't measure it. I thought it was foolish actually. If I had to guess I'd say 2.5.



[sassyotto]

3 90 degree elbows dont affect airflow. What you smokin?

maybe for a Vortex, but that aint no Vortex
