We are introducing our new truckmount and we are having a problem coming up with a name. As you may know, most of our truckmounts are named after explosives. We have the TNT, the Nitro, the Lazer, and the Reactor. The winner of the contest will receive $250 of Judson Labratory products.
I will give you some specifications on this truckmount to give you some ideas.

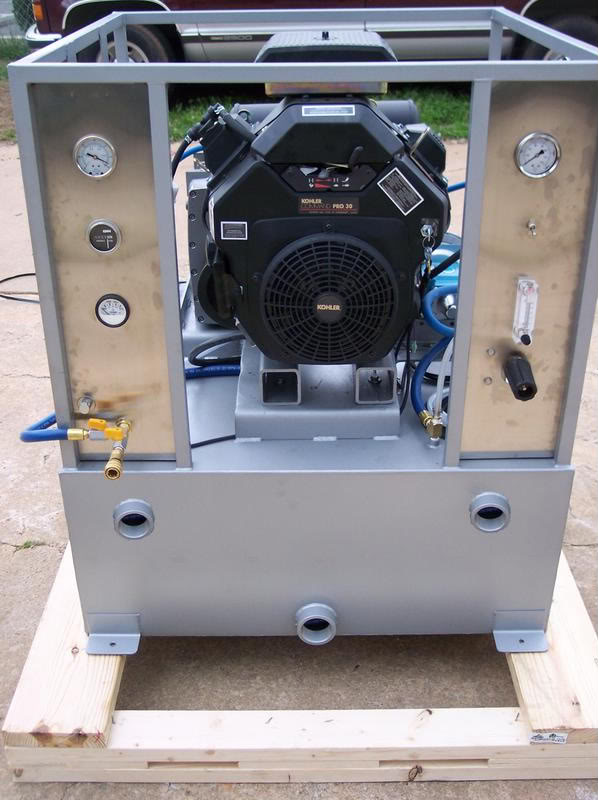

* The unit will consist of an all-stainless steel construction. The stainless is thick 11 guage 304.
* The recovery tank capacity is 150 gallons.
* The presssure pump is a CAT 3CP pumping cold water only.

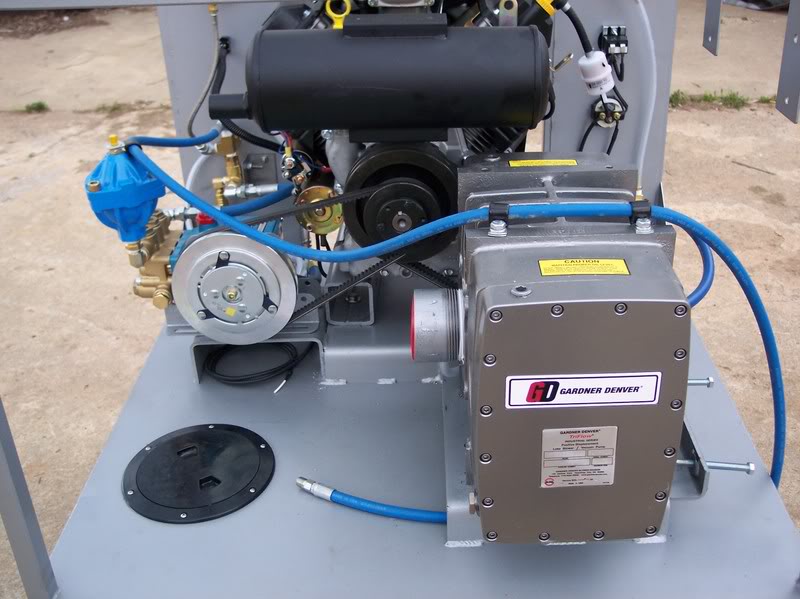

* The blower is a Tri-Lobe Sutorbuilt double-splash lubrication 550 CFM in 16 inches of Mercury.

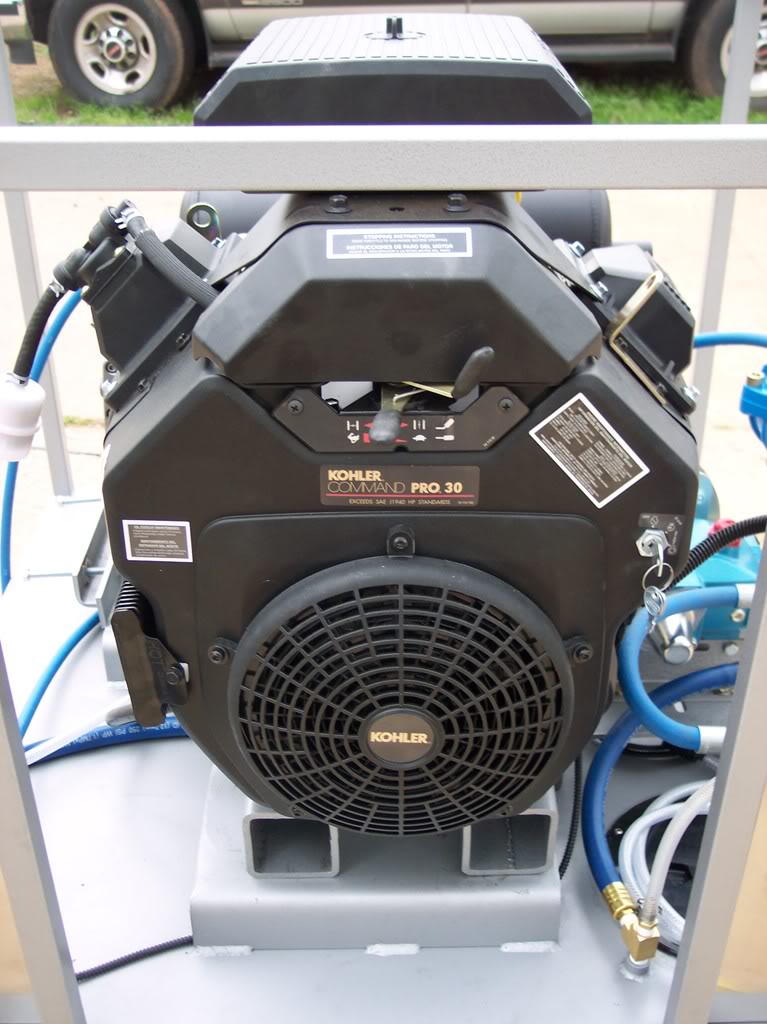

* The engine is a 30 HP air-cooled Kohler.
* The heating system is a Little Giant #4 high-pressure LP heater.
* Maximum operating pressure for tile floor cleaning is 1300 psi and tempurature maintaining 220 degrees.
This unit will maintain 240 degrees on a Greenie 10 flow wand or it will maintain 240 degrees on two standard flow wands. This unit is fully capapble of running two wands if needed.

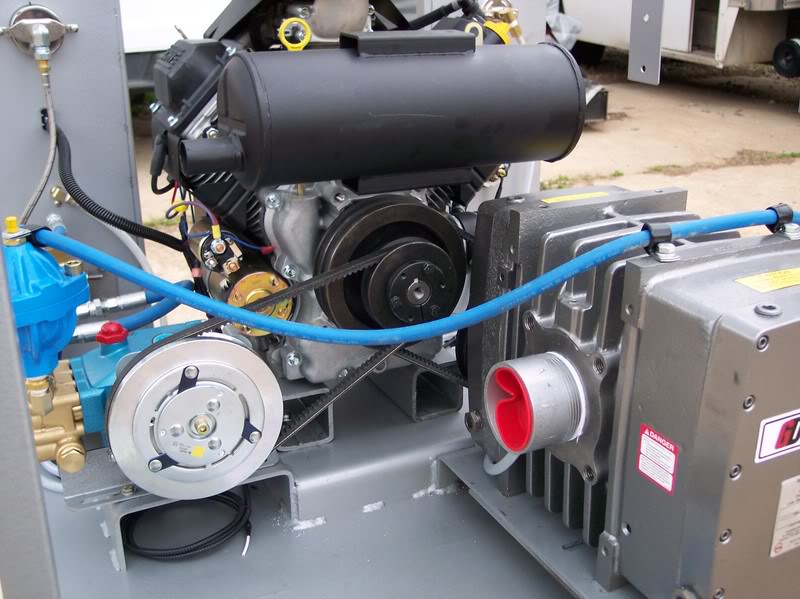

It has the legendary TNT layout design, uses the most common local available parts. All the components are easily accessable. Once the unit is mounted in the side door of a van the pressure pump is located between the driver and passenger seat. Also the blower and engine maintenance can be performed from this position.
The price of this unit is $16,995 and includes the base unit, #4 high pressure Little Giant Heater, 100 feet of vacuum hose and pressure hose and one 12 inch standard flow wand.
I will give you some specifications on this truckmount to give you some ideas.
* The unit will consist of an all-stainless steel construction. The stainless is thick 11 guage 304.
* The recovery tank capacity is 150 gallons.
* The presssure pump is a CAT 3CP pumping cold water only.
* The blower is a Tri-Lobe Sutorbuilt double-splash lubrication 550 CFM in 16 inches of Mercury.
* The engine is a 30 HP air-cooled Kohler.
* The heating system is a Little Giant #4 high-pressure LP heater.
* Maximum operating pressure for tile floor cleaning is 1300 psi and tempurature maintaining 220 degrees.
This unit will maintain 240 degrees on a Greenie 10 flow wand or it will maintain 240 degrees on two standard flow wands. This unit is fully capapble of running two wands if needed.
It has the legendary TNT layout design, uses the most common local available parts. All the components are easily accessable. Once the unit is mounted in the side door of a van the pressure pump is located between the driver and passenger seat. Also the blower and engine maintenance can be performed from this position.
The price of this unit is $16,995 and includes the base unit, #4 high pressure Little Giant Heater, 100 feet of vacuum hose and pressure hose and one 12 inch standard flow wand.
Oh,and you cant close all the doors either
