Edic 500 Galaxy3 stage vac, heated w hoses no wand package share LIMITED QTY"S
- Thread starter GCCLee
- Start date
Bought and paid for!
2245.00 + 15 for the WT
Should be here in East TN well before the Festival In aptoos. if not someone may need to come get me in LA : )
Excited and Skeered when making Equip Purchases. We must have the most bang for buck and felt the Edic was it.
He has two more for the same price if ya want to tell your buddies on the other boards.
Chris
2245.00 + 15 for the WT
Should be here in East TN well before the Festival In aptoos. if not someone may need to come get me in LA : )
Excited and Skeered when making Equip Purchases. We must have the most bang for buck and felt the Edic was it.
He has two more for the same price if ya want to tell your buddies on the other boards.
Chris
bob vawter
Grassy Knoller
you'll hafta be more specific...
I had Hoekilla....Doekilla....and then CRASH who went on to buy my bidness
doesn't sound lik me...
nooooooo it hadta be back on the blue board...you were such a pompous prick
no it jus means never having to say i'm sorry
but anyway..nice talkin' to ya......
Last edited:
hogjowl
Idiot™
"Were"?
I try to be that way NOW!
I try to be that way NOW!
Desk Jockey
Member
+2
Jack Zipper Zerkie
Member
A quick cheap fix for the weight is to go to Lowe.s plumbing dept. and buy 1/2 inch steel threated pipe 2-12inch and a 10 inch for the handle and 2 elbows. Put them together and use muffler clamps to hold to the units handle. It doesn,t look grest but it raises the handle height and allows more control of the weight and balance problem. It worked for me it,s to expensive to drop it. jz.
Last edited:
bob vawter
Grassy Knoller
ya nice....
bob vawter
Grassy Knoller

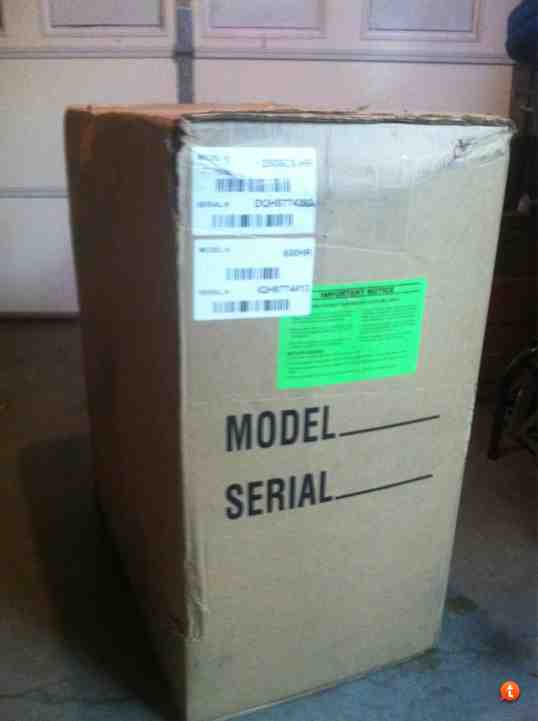

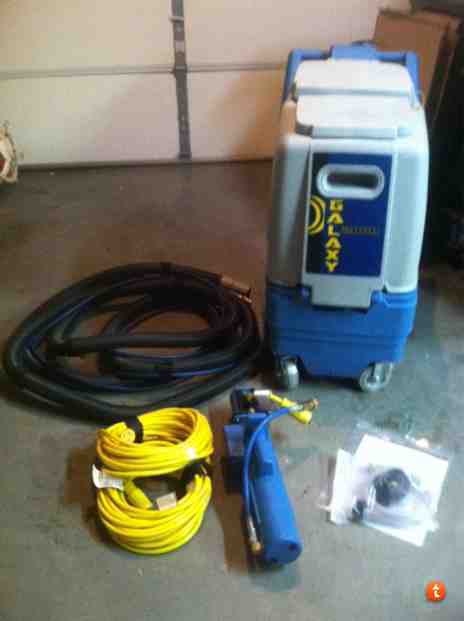

And Here We Have, Brand Spankin New
Just fur Bawb
Jack is correct, very front heavy.
Hopefully I can use it to clean 2 rooms and one of our couches here,late tomorrow.
Ba Blam Jerry Da Man : )
i thought I was ...da man....
ruff
Member
Why is it that looking into the inside of a portable, never brings me any fuzzy, warm memories?
I often think porta poty myself : )
ruff
Member
Not exactly what I was thinking buttt........
I just hate it when I have to try and fix it on location, which in my case, is usually a disaster.
It is also a disaster when I try to fix it at home, but I have the illusion of control.
I just hate it when I have to try and fix it on location, which in my case, is usually a disaster.
It is also a disaster when I try to fix it at home, but I have the illusion of control.
I hear ya, my squirrels go into over drive when there's problems in the field.
I like the comfort of my cage too Ofer : )
Desk Jockey
Member
Inside...outside anywhere within several city blocks and I feel lunch backing up on me! Never met one I liked.
ruff
Member
And do they reciprocate?
Desk Jockey
Member
I know they don't like me!
Ok seriously portables have there place in the industry..............................................back home collecting dust in the corner.
Ok seriously portables have there place in the industry..............................................back home collecting dust in the corner.
ruff
Member
O.K.
Is there a doctor in the house?
We need urgent help here. Somebody needs to finally remove the portable chip off of Richard's shoulder.
It has been weighing the poor thing down for ages now.
Is there a doctor in the house?
We need urgent help here. Somebody needs to finally remove the portable chip off of Richard's shoulder.
It has been weighing the poor thing down for ages now.
Desk Jockey
Member
Hey I'm the Doc and what I prescribe is stay the fook away from them thur portie-ables.
Ok ok they are a necessary evil. but non the less, they are still evil!
ruff
Member
So......are you a convert now?
Or do I call Mardie!
Or do I call Mardie!
Desk Jockey
Member
Actually I'm a Catholic...just not a very good one. I'm the "portable" of Catholic's.
I try but well you know....my Tourette's gets in the way.
Last edited by a moderator:
ruff
Member
ruff
Member
I like Chris's English.
Short musical and to the point
Just perfect. Or as they may say in the south: "Bwaaahaa dang Chris, lol."
My father liked to beat me for continuously saying "Yea" as a kid, so I learned quick to compete in the Yes Sir, No Sir arena of society if ya catch my drift : ) Mom had no idea what I was doing so It was a very Educational Experience to say the least.
However, Somehow in between all that self induced mush I was subjected to, someone taught me to turn a wrench.........
Hey EDIC,
Who in the HEck installs the Quick Connects on your Machines?
They must be out of Banana's back there, might want to check on em : )
Or Print this and give it to em.

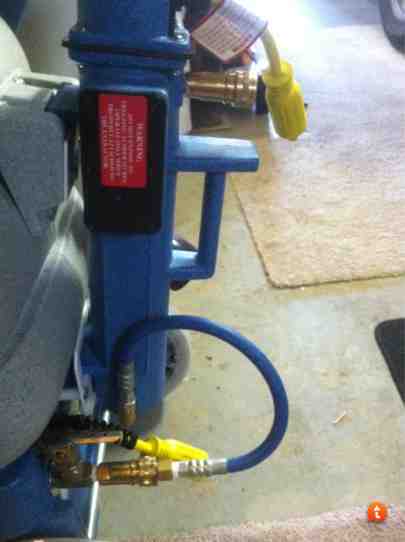

Female goes on the Machine Fitting (the one w the Bypass lever)
Female goes on the TOP HX Fitting
Male on Bottom HX Fitting
Male On Air Bleed Hose ( and you circulate into the FW Tank, why waste clean water?)
That Black plug your supposed to stick in the vac port is jus kinda dumb too, see above about bleeding pump.
THIS THING IS A POWERHOUSE!
Dynamite in a small package for a porty!!
Jack Zipper Zerkie
Member
Hey chris I was born backwards so it works for me.My first truckmount was a Whitemagic and thats how they do the connections. All my hoses are set up with male ends with shutoffs. The first job of the day I ALWAYS put a female on the hose to clean anything out of the supply line to start with a clean water flow. Great portable. jz.
I guess i get it from the auto industry days.
I run shut offs behind the females. Currently out and need to grocery shop.

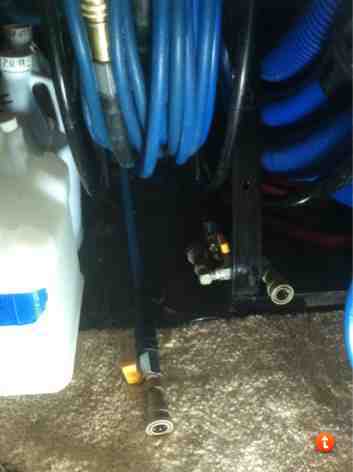

This is how all of my hoses on the truck are set up. First two leads have shut offs.
Normally I just unhook and hook in or I can run the reel live : )
EDIC
Member
Hey! I'm glad you decided to get one! Thanks for the compliments and I'm also happy you brought up these points. So here's our chance to address the method to our madness.
Yes, we know full well it is not industry standard to place male q.d's on machines but we have good reasoning behind it. We put male Q.D.'s on our machines because it facilitates one handed connecting and disconnecting. If the female is on the machine or the heater, I need to pull back the ring on the female (one hand) and tug on the hose with the male (second hand) at the same time to disconnect. Reverse that for install. If the connections are hot you give yourself more contact time with the hot brass connection (not fun).
With our set up, we put a male on the machine and on the heater for one handed removal. The female is always on the removing end of our hoses. Pull the ring back on the female and you've disconnected. Pull the ring back and push the female in and you've got a connection again. If your connection is hot, then you have minimized the time your hand is on hot brass. Esily done with one hand.
Ok, so maybe having a female on the machine is not as hard as I made it seem, but watch this video. It's definitely easy our way.
<iframe width="560" height="315" src="//www.youtube.com/embed/x_TdQBFVPpY" frameborder="0" allowfullscreen></iframe>
Also, for everyone else, you just witnessed how long an EDIC heater install takes on our galaxy extractors (minus, the 5 seconds it takes to mount the heater on the bracket).
As far as the bleed hose going into the waste tank. This is a great design! You are using the power of the vacuums to "Power prime" the machine without the use of an external hose.
To prime your 500PSI unit:
-Disconnect all solution hoses
-Press the lever on the valve on the back of the machine
-Turn on the pump
-Turn on the vacuums (make sure lid is closed)
-The negative pressure from the vacuum will purge the system of air and prime your pump.
This happens very quickly and a tiny amount of solution is wasted.
We add an external bleed hose with the 2000CX-HR as a bonus. You don't really need it but on the bright side, you got a free female QD!
Last edited:
