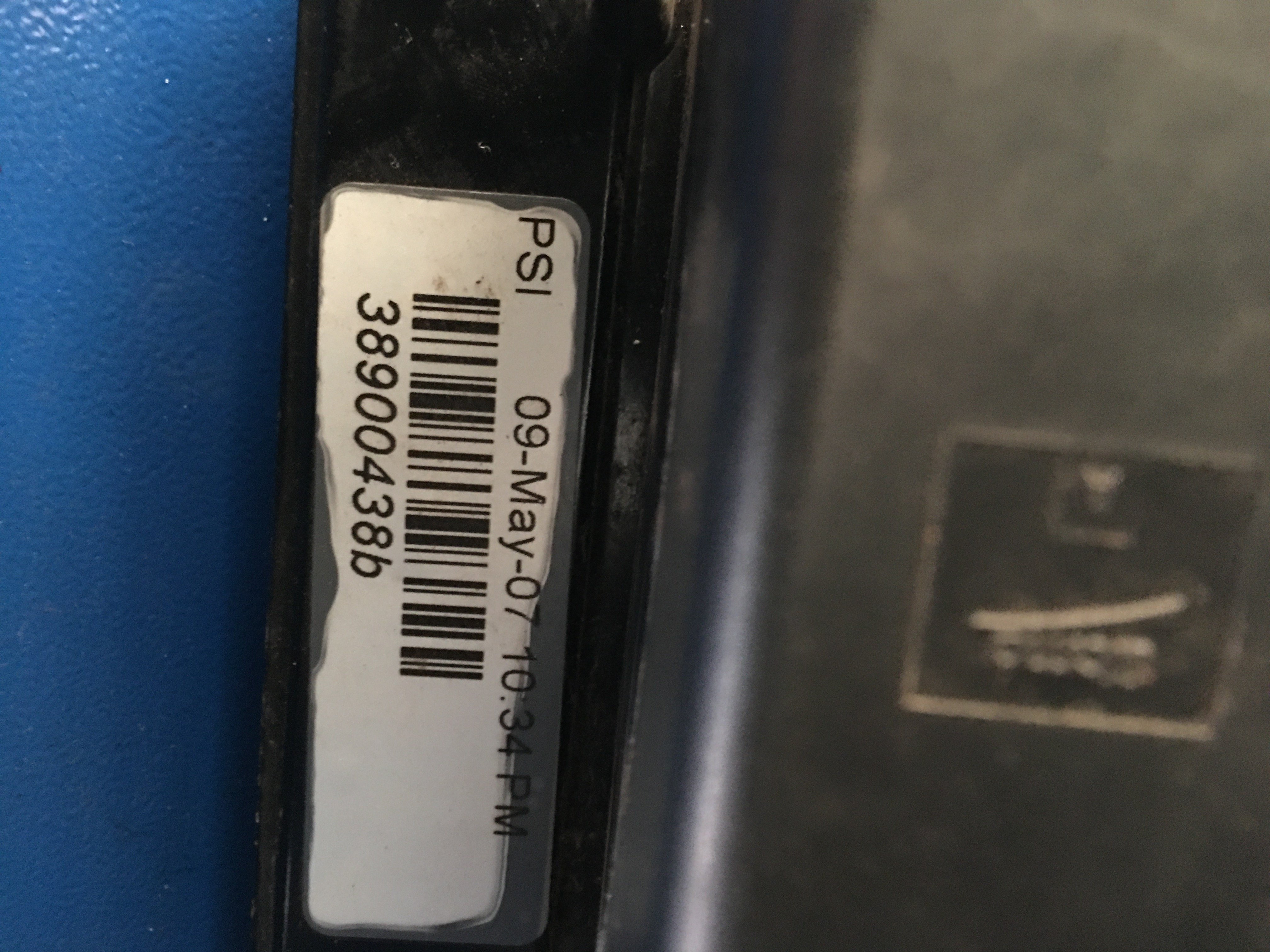

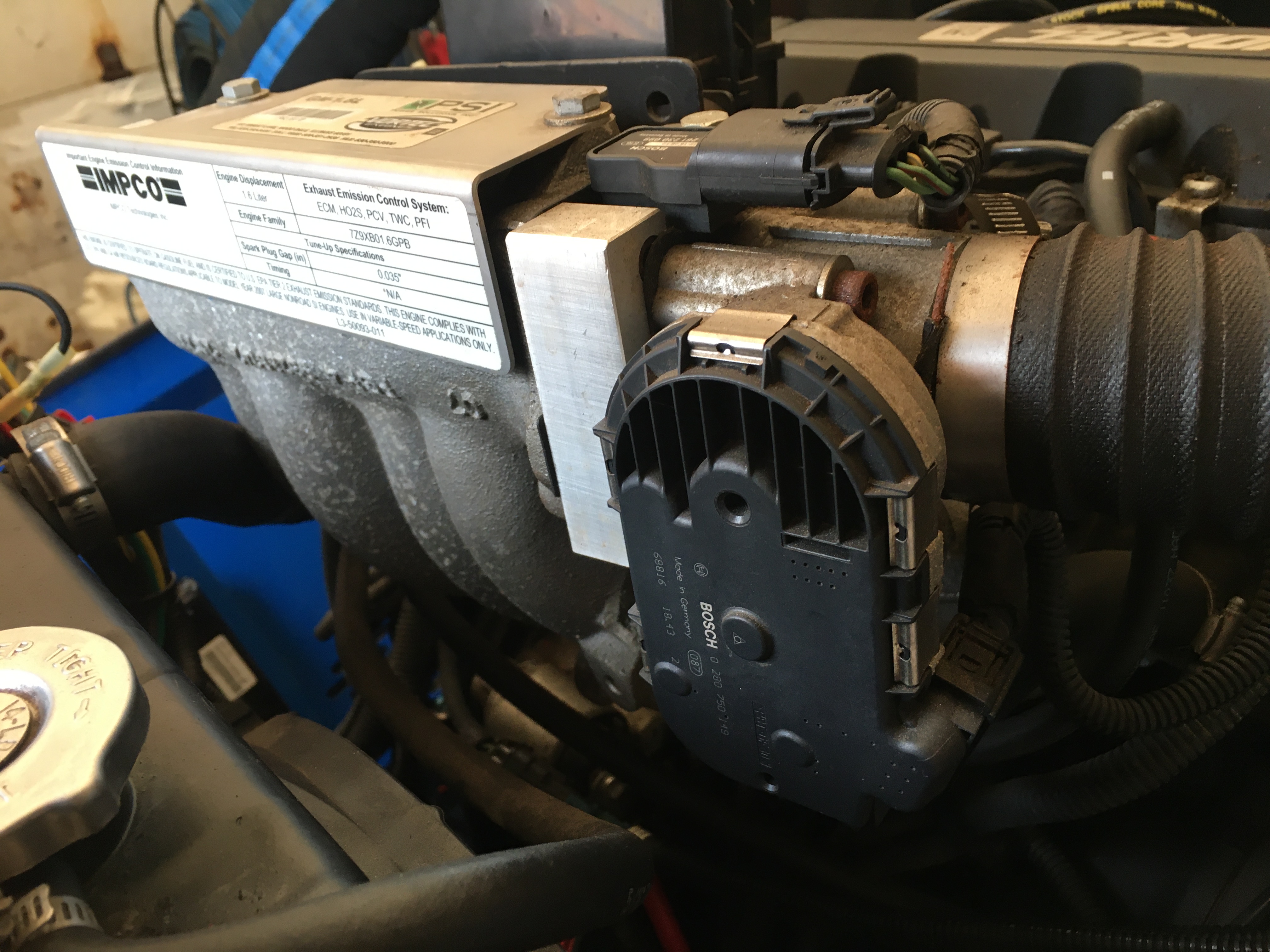

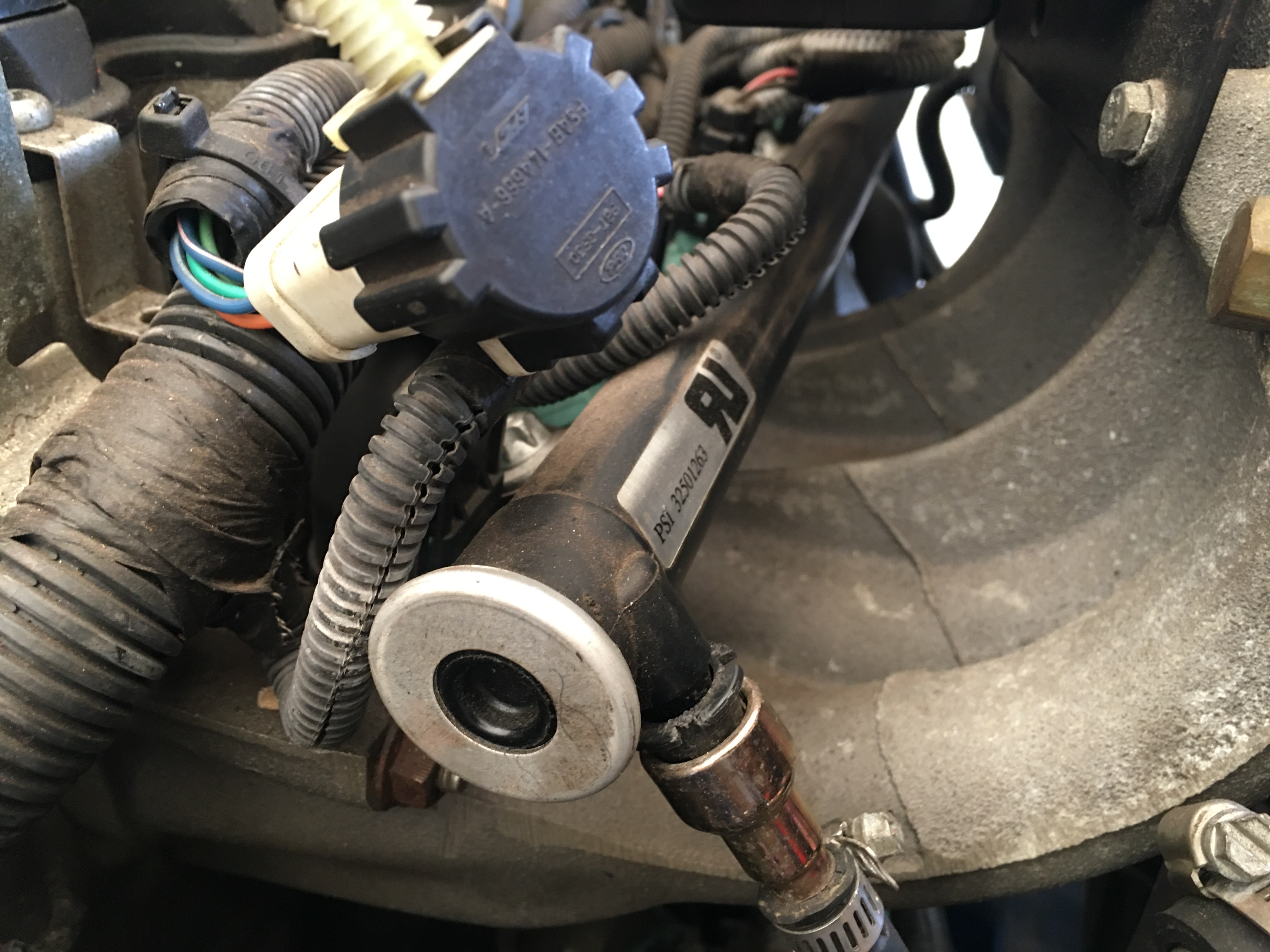

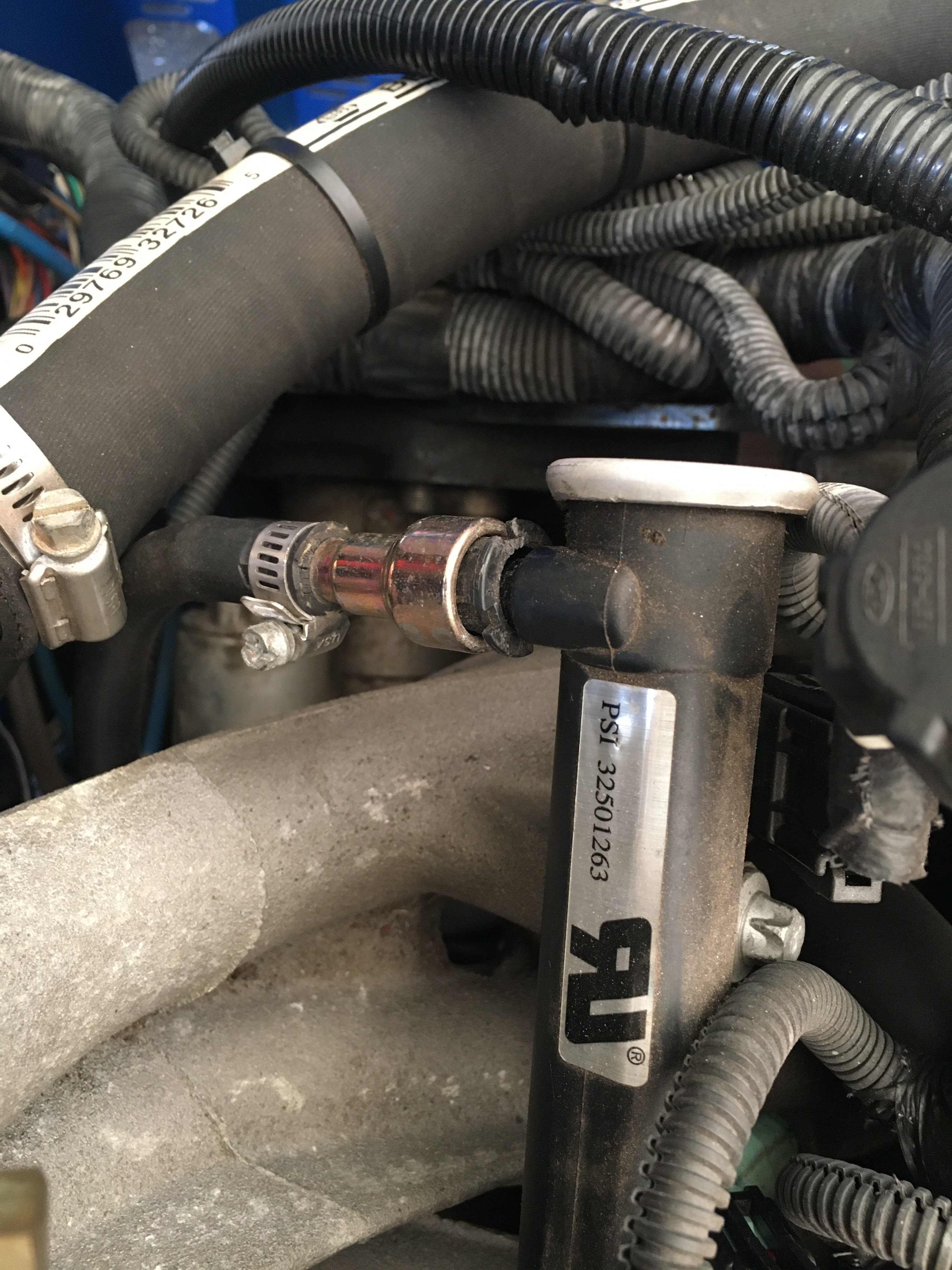

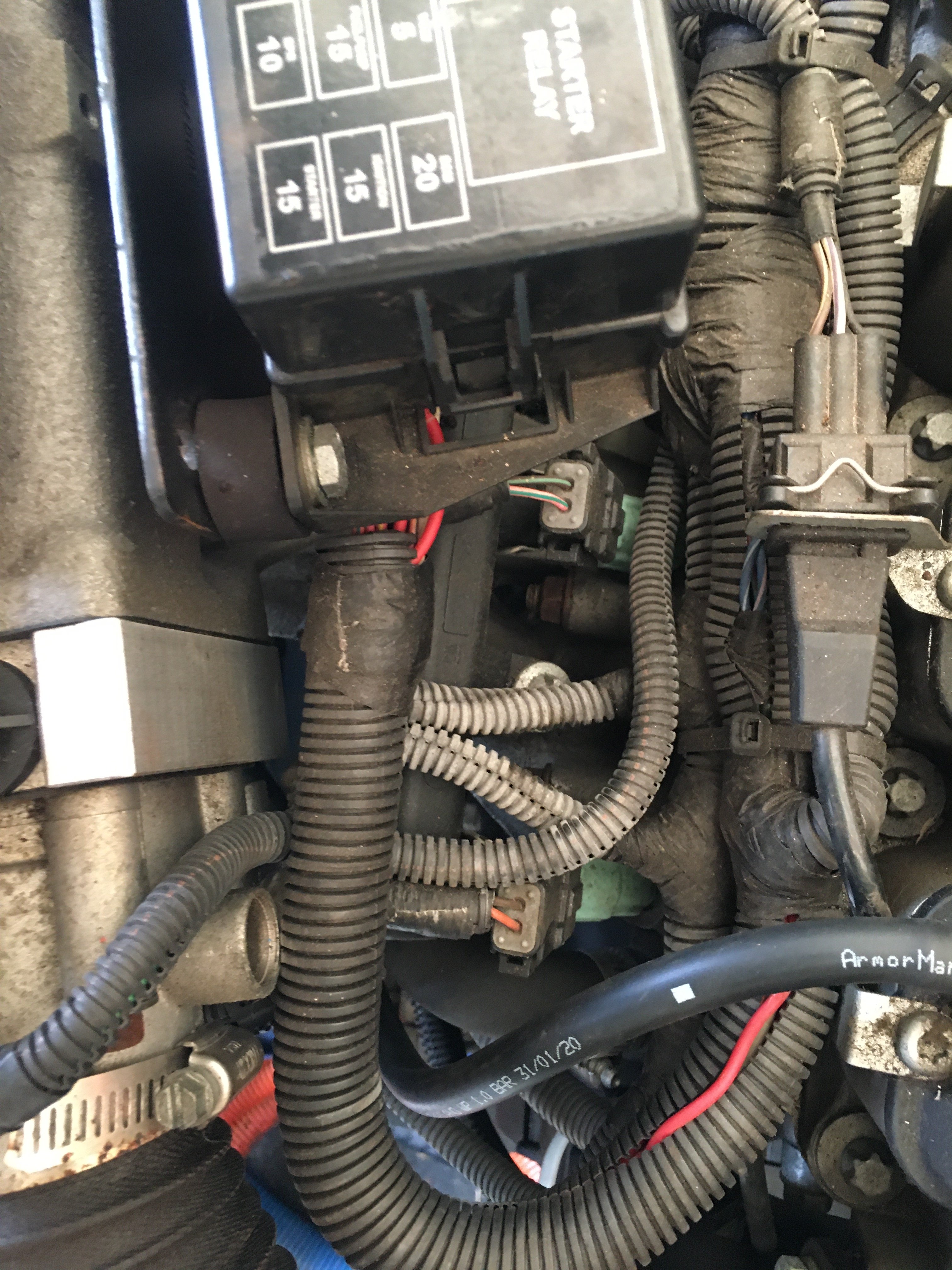

That connector close to the floor is where I’m reading 35psi right before the injectors.

Justin told me 55. And the chevy Aveo engine has the same pressure of 55ish also

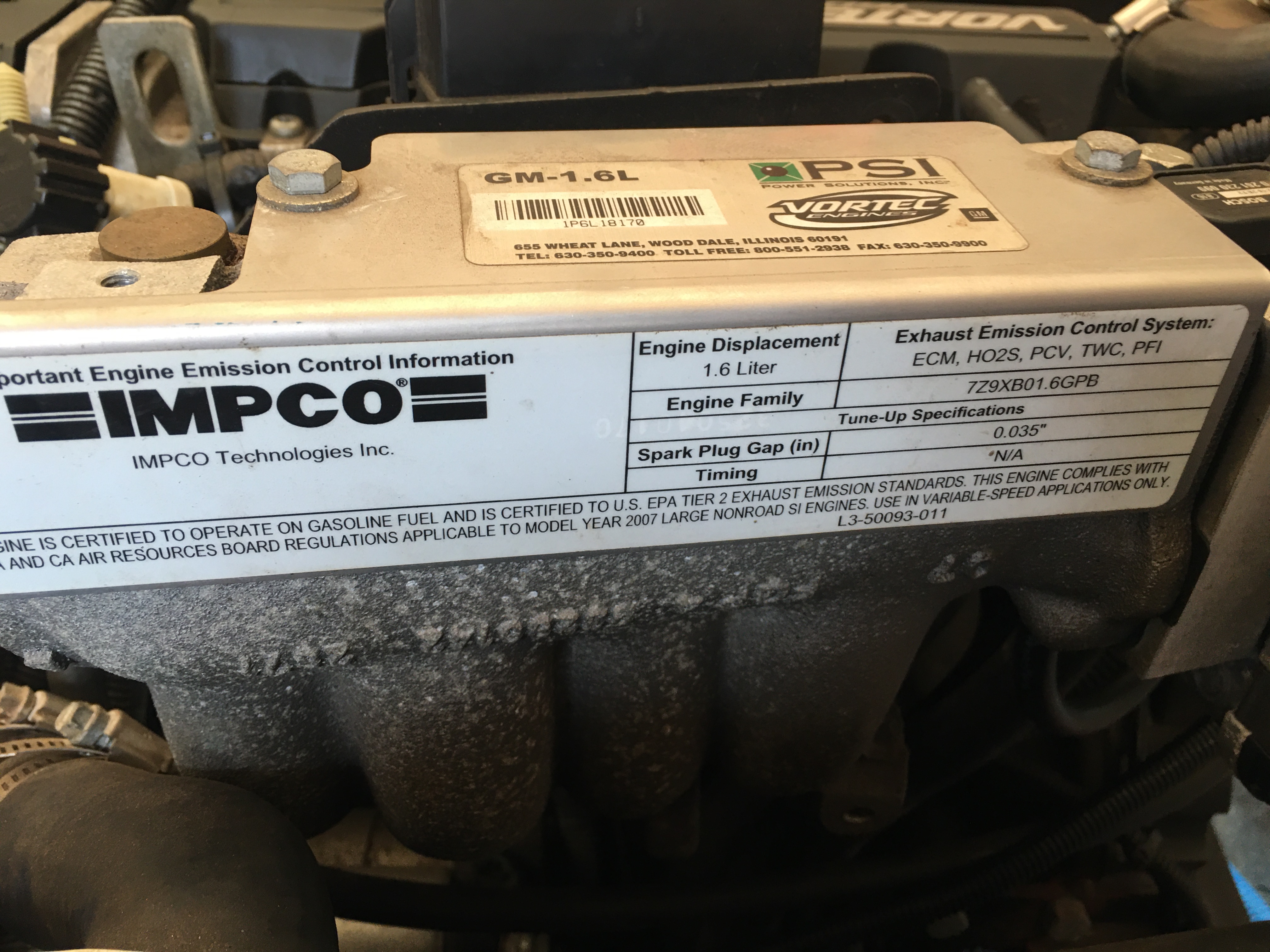

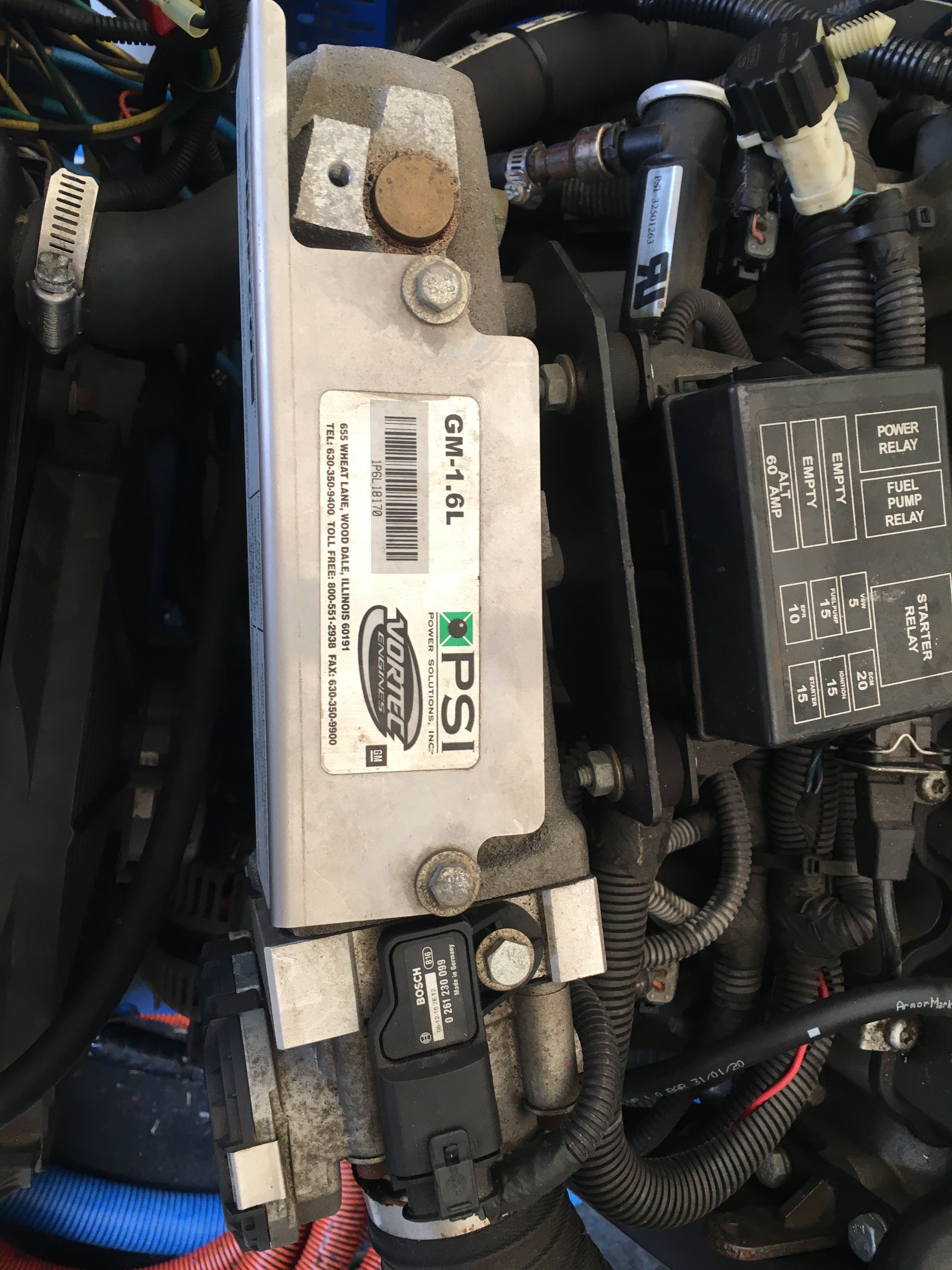

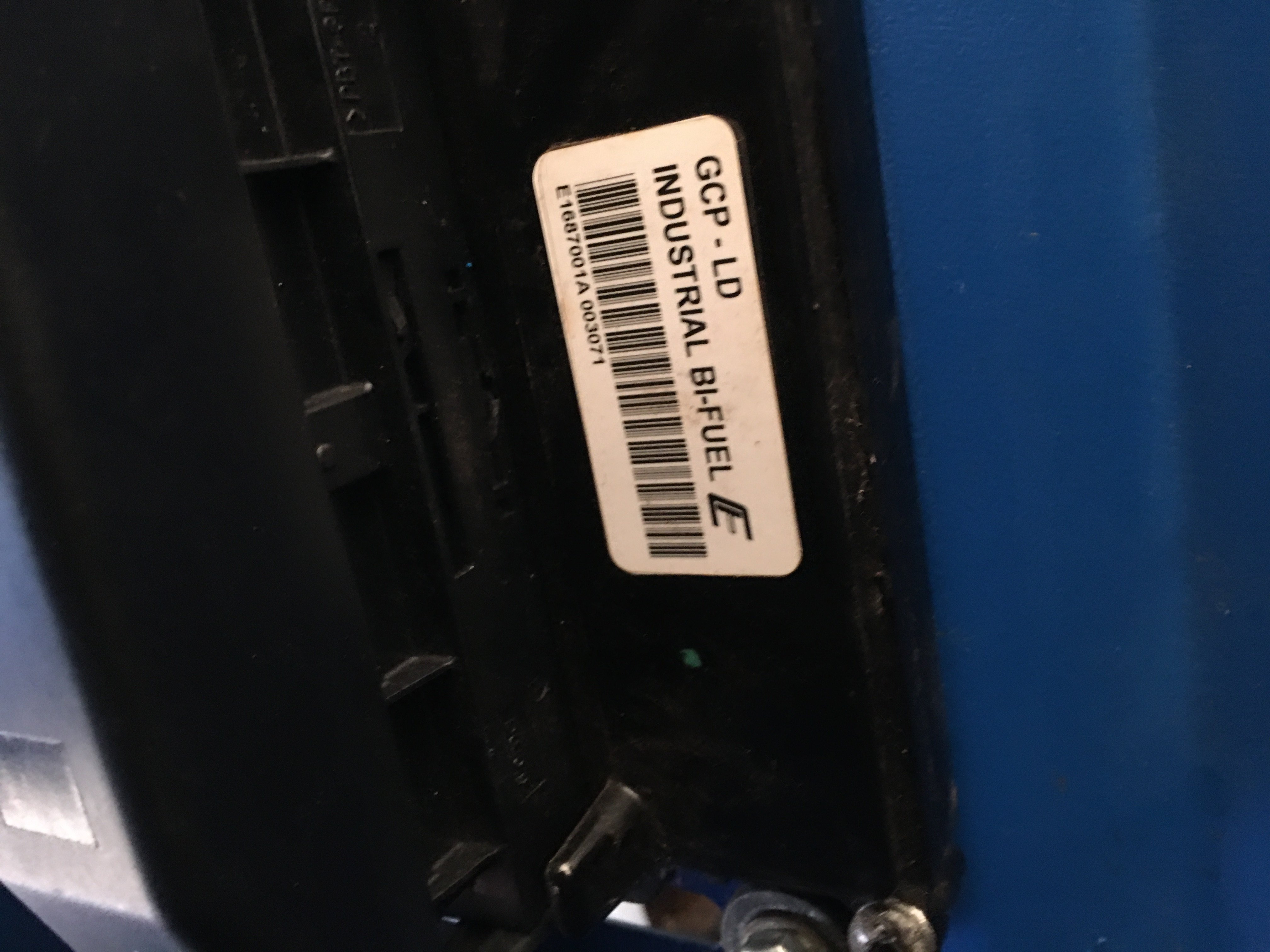

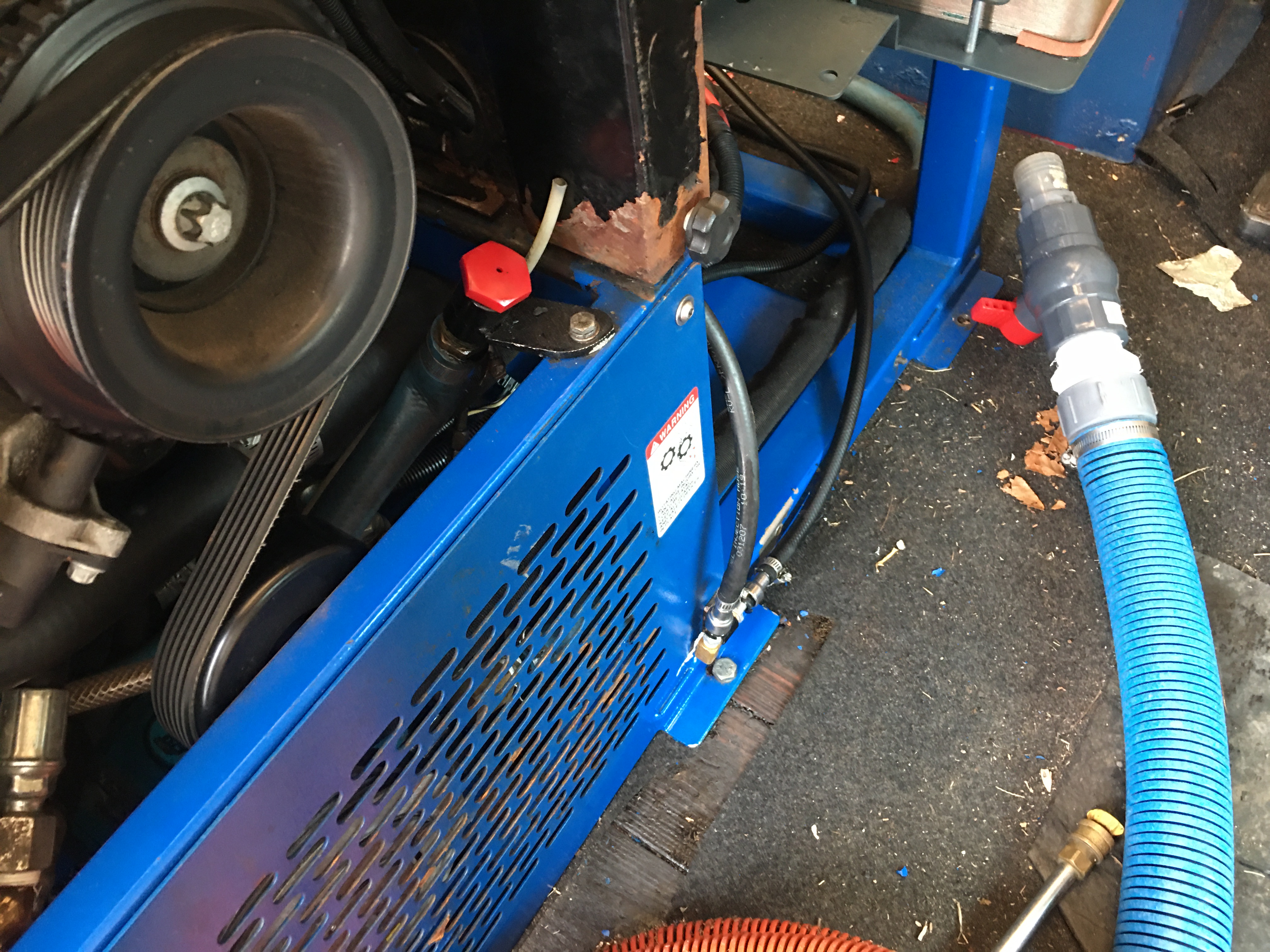

3A4B734E-A238-4B70-ACE0-B0DD01EB5388.jpeg BB06ED92-95CA-4050-BDBD-EE5ED42D1AA4.jpeg CBC34799-6ED7-49B3-96EC-152214EFDDDF.jpeg 69626589-6C5D-4061-9D72-8F9BC26BF60A.jpeg A9BDB8FD-F7D2-4620-A4DC-9DADEB0AB2B3.jpeg 79BF5856-AE26-4A91-8B34-E18DE0008912.jpeg FD91A23B-4E01-4AA8-BFEE-3FF69AA0E7B6.jpeg 72F5F2B9-2384-430D-BFC5-843B59B07590.jpeg

  • Like
Reactions: Swani

BIG WOOD

MLPW
Joined
Feb 4, 2016
Messages
11,522
Location
Georgia
Name
Matt w.
Is that light on? That is a MIL. In the olden days you jump to pins and count the blinks...some have it on the computer
The light is on and blinks once when the key is turned on with the engine off.

The light is off with no blinking when the engine is running

I went ahead and hooked up a wire to the same spot that's on my everest and got a code of 654 I think

Last edited:

FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
idk which pins. I can see where it is wired into connector 1 . I'll see if I can find***. I would think something causing symptoms you are describing would illuminate the MIL but maybe not

is the regulator is built into the rail.

at idle you are likely to get low fuel pressure because of vac....how/when are you measuring




****might be a bit....have to take the bed off my ranger

Last edited:

FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
I was wrong on that last part (I think)....although I'd still probably listen to/check with multimeter injectors (#4)


FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
how did you get that code?

if it is correct I'm gonna say injector #4


FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
Correction: The code is 1654

I forgot to add that first blink before the last 3

fook...654 would have made more sense

without something to cross reference 1654 might actually be displayed before the actual code or indicate that no codes are stored. Is there anything after 1654 blinks a few times?

again I'm not sure it is an actual code


FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
"The ECM will flash the MIL indicator with a pause between represented numbers that represent DTC codes. The sequence starts with code 1654. Code 1654 confirms the system has entered the blink code mode. The ECM will flash code 1654 (3) times before displaying the actual DTC code that may be set"

This is from a PSI manual and why I said 1654 may not be a code at all

Last edited:
  • Like
Reactions: BIG WOOD

FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
and from a gm 1.6 manual

The Engine Control Module (ECM) receives information from various engine sensors in order to control the operation of the fuel injectors. The electric fuel pump, prevents fuel flow unless the engine is cranking or running. During key on, electric fuel pump receives a two (2) second prime pulse from the ECM which allows Gasoline to flow from the tank through fuel filter and fuel lines to the fuel rails where the pressure is regulated. With Ignition “ON” and fuel pump running pressure should be 284- 325 kPa (41-47 psi). When the engine is idling, manifold pressure is low (high vacuum) and is applied to the pressure regulator diaphragm. Vacuum will offset the spring pressure and result in very low fuel pressure. Fuel pressures at idle will vary somewhat depending on barometric pressure but, should be less then pump pressure.

  • Like
Reactions: BIG WOOD

BIG WOOD

MLPW
Joined
Feb 4, 2016
Messages
11,522
Location
Georgia
Name
Matt w.
It held 35psi from idle to full throttle. So my goal is to get it increased somewhere between 41-47psi. Is that correct?


FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
go to 1B-24 (again I don't have anything I know to be specific to the model)


Attachments

  • 17893429-1-6L-GM-VORTEC-SRVC.pdf
    16.7 MB · Views: 12

BIG WOOD

MLPW
Joined
Feb 4, 2016
Messages
11,522
Location
Georgia
Name
Matt w.
fook...654 would have made more sense

without something to cross reference 1654 might actually be displayed before the actual code or indicate that no codes are stored. Is there anything after 1654 blinks a few times?

again I'm not sure it is an actual code
new code after 1654was displayed 3times. code 91


FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
Low voltage on the fuel pressure sensor



if I had to guess at this point I would say fuel regulator is shot (go through the test procedures above). It is built into the rail right?

I looked around for a new rail and only found a crazy expensive one. Emailed PSI yesterday but haven't heard back.

if it is a built in regulator I think i'd find a a way to gut the regulator and add an inline one............or take a fuel rail extrusion and the injectors to a machinist






*there is also a standard rail for those but I haven't found a source....maybe Chicago Engines

Last edited:

BIG WOOD

MLPW
Joined
Feb 4, 2016
Messages
11,522
Location
Georgia
Name
Matt w.
if I had to guess at this point I would say fuel regulator is shot (go through the test procedures above). It is built into the rail right?

I looked around for a new rail and only found a crazy expensive one. Emailed PSI yesterday but haven't heard back.

if it is a built in regulator I think i'd find a a way to gut the regulator and add an inline one............or take a fuel rail extrusion and the injectors to a machinist






*there is also a standard rail for those but I haven't found a source....maybe Chicago Engines
It’s the MAP sensor I replaced yesterday. It’s called a FPR in the manual but is a MAP at the auto parts store.


FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
It’s the MAP sensor I replaced yesterday. It’s called a FPR in the manual but is a MAP at the auto parts store.


I'm probably wrong but I thought it had both


edit: why I was thinking that

but again it's hard to know what applies without the specific manuals....this pdf also gives a different MIL entry confirmation code

Last edited:

FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
idk how much this applies but I'm trying to collect info to put in the resources section

1.6l trouble codes


Attachments

  • dokumen.tips_psi-16l-pfi-diagnostic-trouble-code-section-table-of-psi-16l-pfi-certified-engine.pdf
    4.9 MB · Views: 10

BIG WOOD

MLPW
Joined
Feb 4, 2016
Messages
11,522
Location
Georgia
Name
Matt w.
The voltage readings came out normal on the sensor on the fuel rail. I don’t see a regulator on the injectors.

And there is no Shrader on the fuel rail assembly

  • Like
Reactions: FredC

FredC

Village Idiot
Joined
Jul 13, 2011
Messages
23,344
-
The voltage readings came out normal on the sensor on the fuel rail. I don’t see a regulator on the injectors.

And there is no Shrader on the fuel rail assembly

have you tried calling PSI

but that may be talking about the type where the FPR is on a tubing rail and not applicable here

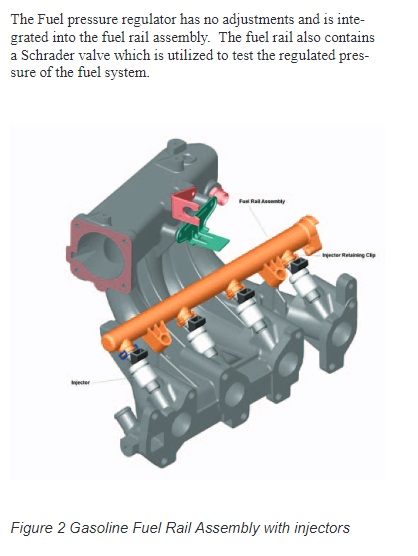

like so



BIG WOOD

MLPW
Joined
Feb 4, 2016
Messages
11,522
Location
Georgia
Name
Matt w.
-


have you tried calling PSI

but that may be talking about the type where the FPR is on a tubing rail and not applicable here


like so

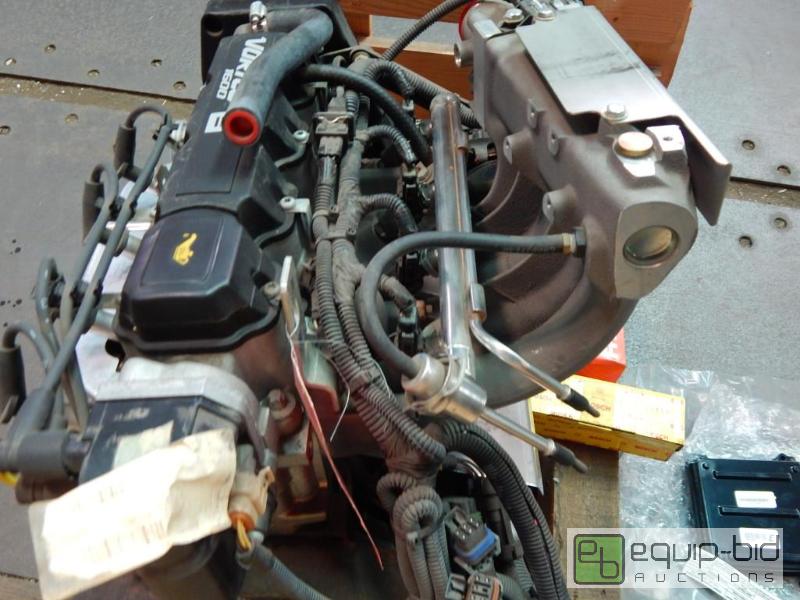

View attachment 120458
Yeah it probably is, but it doesn’t apply to mine. I’m just gonna gamble on it and hope this ECU fixes it. It runs rough on the hot days anyway so I was thinking the ecu is damaged from where it was located for 2k hrs before I relocated it

  • Like
Reactions: FredC
